Prisma G

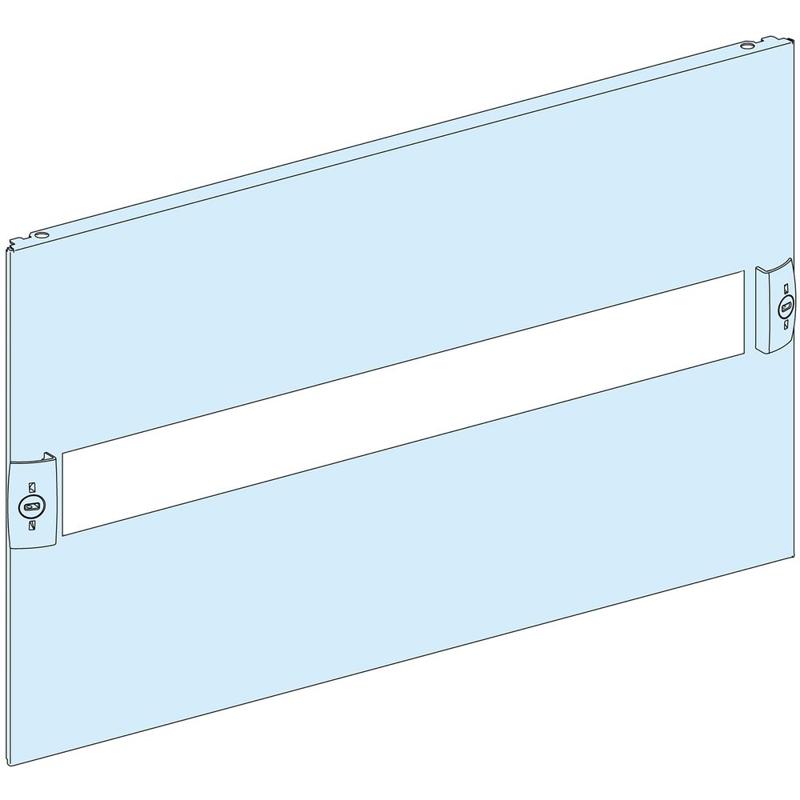

Schneider Electric catalog image for this SKU; may represent the product family.
FRONT PLATE
MODULAR FRONT PLATE WIDTH 600/650 4M
SKU 03204Schneider Electric 03204 is a front plate in the Prisma G range. Key specifications include quantity per set: Set of 1; poles: 1 x 3P: modular rail support: INS100 vertical installation; net weight: 0.72 kg.
Set of 1Quantity per set
1 x 3P: modular rail support: INS100 vertical installationPoles
0.72 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 03204 |
|---|---|
| Range | Prisma |
| Range of product | Prisma G Prisma P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | Prisma Prisma G enclosure Prisma Prisma P cubicle Prisma Prisma Pack 250 enclosure |
| Type of front plate | Cut-out Modular |
| Installed device | Acti 9: fixed modular device Multi9: fixed modular device Vigilohm: IM20 Vigilohm: IM20H ComPact: fixed INS100 - control: direct front rotary handle - vertical installation ComPact: fixed INS125 - control: direct front rotary handle - vertical installation ComPact: fixed INS160 - control: direct front rotary handle - vertical installation ComPact: fixed INS40 - control: direct front rotary handle - vertical installation ComPact: fixed INS63 - control: direct front rotary handle - vertical installation Vigilohm: IM10 Vigilohm: IM10H |
| Poles description | 1 x 3P: modular rail support: INS100 vertical installation 1 x 4P: modular rail support: INS100 vertical installation 1 x 3P: modular rail support: INS125 vertical installation 1 x 4P: modular rail support: INS125 vertical installation 1 x 3P: modular rail support: INS160 vertical installation 1 x 4P: modular rail support: INS160 vertical installation 1 x 3P: modular rail support: INS40 vertical installation 1 x 4P: modular rail support: INS40 vertical installation 1 x 3P: modular rail support: INS63 vertical installation 1 x 4P: modular rail support: INS63 vertical installation |
| Enclosure/cubicle description | Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Cubicle - width 650 mm depth 400 mm Pack enclosure - width 555 mm Pack enclosure - width 600 mm |
| Connection position | Direct connection |
| 9 mm pitches | 48 |
| Number of 18 mm modules per row | 24 |
| Number of vertical modules [50 mm] | 4 |
| Standards | IEC 61439-2 IEC 61439-1 |
| Product certifications | ASEFA |
| Material | Steel |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish | Matt Smooth |
| Colour | White (RAL 9001) |
| Width | 500 mm |
| Height | 200 mm |
| Net weight | 0.72 kg |
| Quantity per set | Set of 1 |
| functional unit | 650 mm 400 mm Prisma P cubicle Vigilohm 4 4 600 mm Prisma G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 650 mm 400 mm Prisma P cubicle ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4 650 mm 400 mm Prisma P cubicle ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 650 mm 400 mm Prisma P cubicle ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4 650 mm 400 mm Prisma P cubicle ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 650 mm 400 mm Prisma P cubicle ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4 650 mm 400 mm Prisma P cubicle ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G floor-standing enclosure ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G wall-mounted enclosure ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G floor-standing enclosure ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 650 mm 400 mm Prisma P cubicle ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4 650 mm 400 mm Prisma P cubicle ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G floor-standing enclosure ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G wall-mounted enclosure ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 600 mm Prisma G floor-standing enclosure ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G wall-mounted enclosure ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 650 mm 400 mm Prisma P cubicle ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4 650 mm 400 mm Prisma P cubicle ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4 600 mm Prisma G floor-standing enclosure Acti 9 modular device fixed 48 direct 4 600 mm Prisma G wall-mounted enclosure Acti 9 modular device fixed 48 direct 4 650 mm 400 mm Prisma P cubicle Acti 9 modular device fixed 48 direct 4 600 mm Prisma G floor-standing enclosure Multi9 modular device fixed 48 direct 4 600 mm Prisma G wall-mounted enclosure Multi9 modular device fixed 48 direct 4 650 mm 400 mm Prisma P cubicle Multi9 modular device fixed 48 direct 4 600 mm Prisma Pack 250 Pack enclosure Multi9 modular device fixed 48 direct 6 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
