Prisma P
Schneider Electric catalog image for this SKU; may represent the product family.

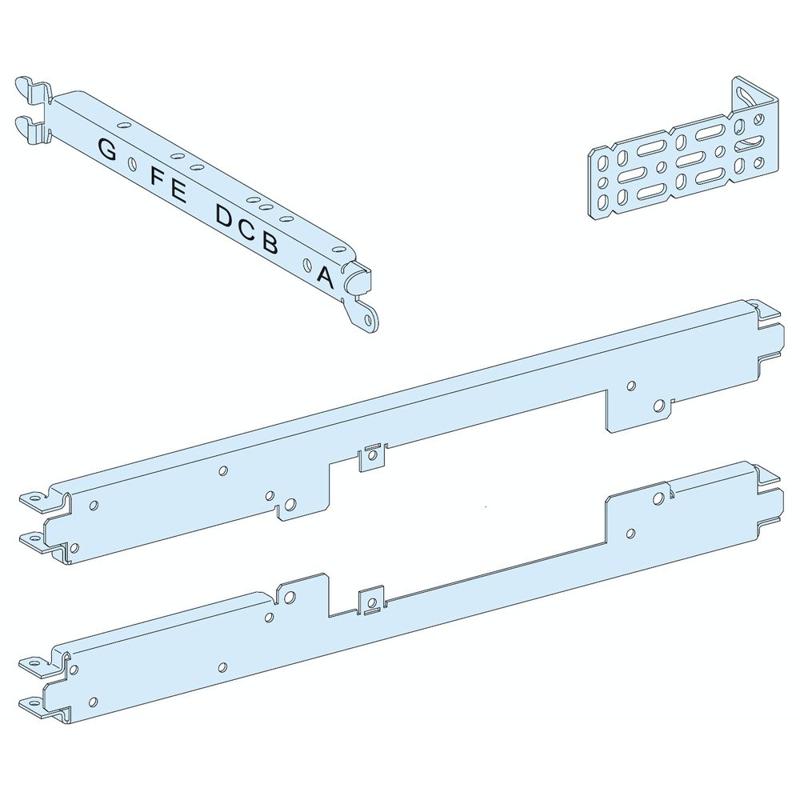

MOUNTING PLATE
M.PL.HZ.NS250 C/O MOT.OR UA/BA
SKU 03417Schneider Electric 03417 is a mounting plate in the Prisma P range. Key specifications include poles: 2 x 3P: fixed NSX100...250 source changeover horizontal installation; net weight: 3 kg; product range: Prisma P.
2 x 3P: fixed NSX100...250 source changeover horizontal installationPoles
3 kgNet weight
Prisma PProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 03417 |
|---|---|
| Range | Prisma |
| Range of product | Prisma P |
| Product or component type | Mounting plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | Prisma Prisma P cubicle |
| installation description | Cubicle - width 650 mm depth 400 mm Cubicle - width 650 mm depth 600 mm |
| Installed device | Source changeover: fixed BA controller - horizontal installation Source changeover: fixed NSX100...250 source changeover - control: remote control - horizontal installation Source changeover: fixed UA controller - horizontal installation |
| Poles description | 2 x 3P: fixed NSX100...250 source changeover horizontal installation 2 x 4P: fixed NSX100...250 source changeover horizontal installation |
| Number of vertical modules [50 mm] | 4 module(s): BA controller, direct in 650 mm Widecubicle 8 module(s): NSX100...250 source changeover, direct in 650 mm Widecubicle 4 module(s): UA controller, direct in 650 mm Widecubicle |
| Standards | IEC 61439-2 |
| Product certifications | ASEFA |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish | Matt Smooth |
| Colour | White (RAL 9001) |
| Width | 650 mm |
| Height | 200 mm |
| Net weight | 3 kg |
| Functional unit | 650 mm 600 mm Prisma P cubicle source changeover BA controller fixed horizontal 1 direct 4 12.5 mm 650 mm 400 mm Prisma P cubicle source changeover NSX100...250 source changeover fixed remote control horizontal 3P 2 direct 8 12.5 mm 650 mm 400 mm Prisma P cubicle source changeover NSX100...250 source changeover fixed remote control horizontal 4P 2 direct 8 12.5 mm 650 mm 600 mm Prisma P cubicle source changeover UA controller fixed horizontal 1 direct 4 12.5 mm |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
