Prisma G

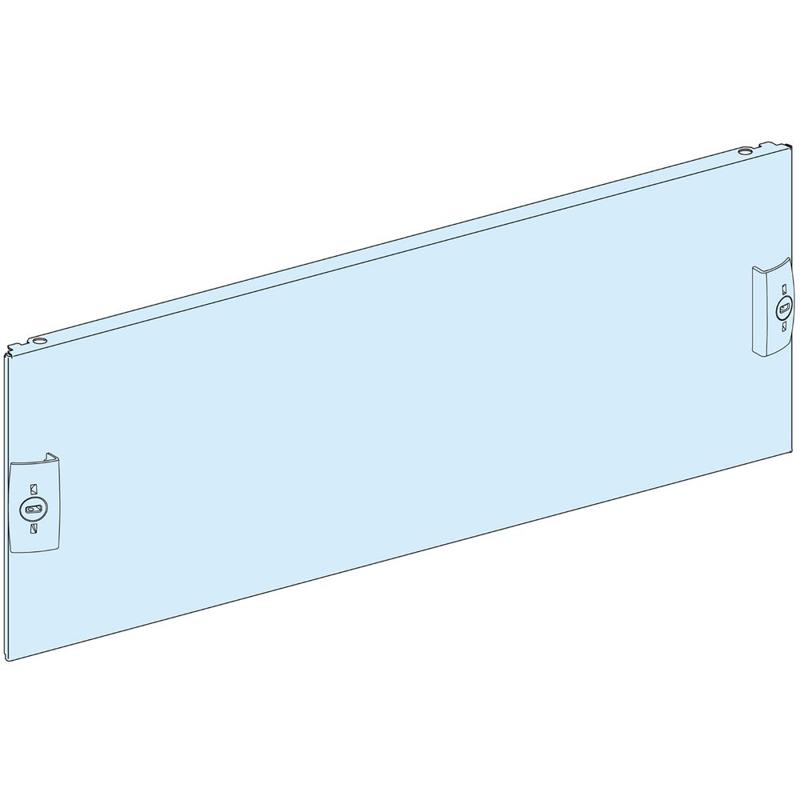

Schneider Electric catalog image for this SKU; may represent the product family.
FRONT PLATE
PLAIN FRONT PLATE WIDTH 600/650 3M
SKU 03803Schneider Electric 03803 is a front plate in the Prisma G range. Key specifications include quantity per set: Set of 1; poles: 9 x 4P: modular rail support: D or K contactors <= 40 A horizontal installation; net weight: 0.68 kg.
Set of 1Quantity per set
9 x 4P: modular rail support: D or K contactors <= 40 A horizontal installationPoles
0.68 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 03803 |
|---|---|
| Range | Prisma |
| Range of product | Prisma G Prisma P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | Prisma Prisma G enclosure Prisma Prisma P cubicle |
| Type of front plate | Plain |
| Installed device | TeSys: fixed D or K contactors <= 40 A - horizontal installation |
| Poles description | 9 x 4P: modular rail support: D or K contactors <= 40 A horizontal installation |
| Enclosure/cubicle description | Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Cubicle - width 650 mm depth 400 mm Pack enclosure - width 555 mm |
| Connection position | Direct connection |
| Number of vertical modules [50 mm] | 3 |
| Standards | IEC 61439-2 IEC 61439-1 |
| Product certifications | ASEFA |
| Material | Steel |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish | Smooth Matt |
| Colour | White (RAL 9001) |
| Width | 500 mm |
| Height | 150 mm |
| Net weight | 0.68 kg |
| Quantity per set | Set of 1 |
| functional unit | 600 mm Prisma G floor-standing enclosure TeSys D or K contactors <= 40 A fixed horizontal 4P 9 direct 3 600 mm Prisma G wall-mounted enclosure TeSys D or K contactors <= 40 A fixed horizontal 4P 9 direct 3 650 mm 400 mm Prisma P cubicle TeSys D or K contactors <= 40 A fixed horizontal 4P 9 direct 3 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
