Prisma G

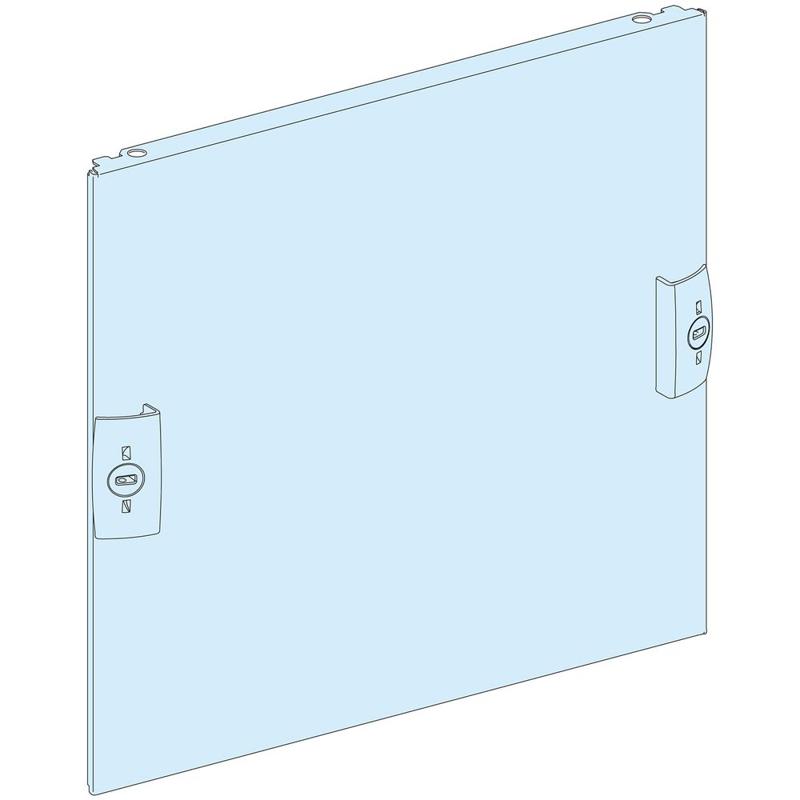

Schneider Electric catalog image for this SKU; may represent the product family.
FRONT PLATE
PLAIN FRONT PLATE W300 2M
SKU 03812Schneider Electric 03812 is a front plate in the Prisma G range. Key specifications include quantity per set: Set of 1; net weight: 0.28 kg; product range: Prisma G.
Set of 1Quantity per set
0.28 kgNet weight
Prisma GProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 03812 |
|---|---|
| Range | Prisma |
| Range of product | Prisma G Prisma P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | Prisma Prisma G duct Prisma Prisma Pack 250 duct Prisma Prisma P cubicle |
| Type of front plate | Plain |
| Enclosure/cubicle description | Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm Cubicle duct - width 400 mm depth 400 mm Pack enclosure - width 300 mm |
| Number of vertical modules [50 mm] | 2 |
| Standards | IEC 61439-1 IEC 61439-2 |
| Product certifications | ASEFA |
| Material | Steel |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish | Smooth Matt |
| Colour | White (RAL 9001) |
| Width | 250 mm |
| Height | 100 mm |
| Net weight | 0.28 kg |
| Quantity per set | Set of 1 |
| functional unit | 400 mm 400 mm Prisma P cubicle 300 mm Prisma G floor-standing duct 300 mm Prisma G wall-mounted duct 300 mm Prisma Pack 250 Pack enclosure |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
