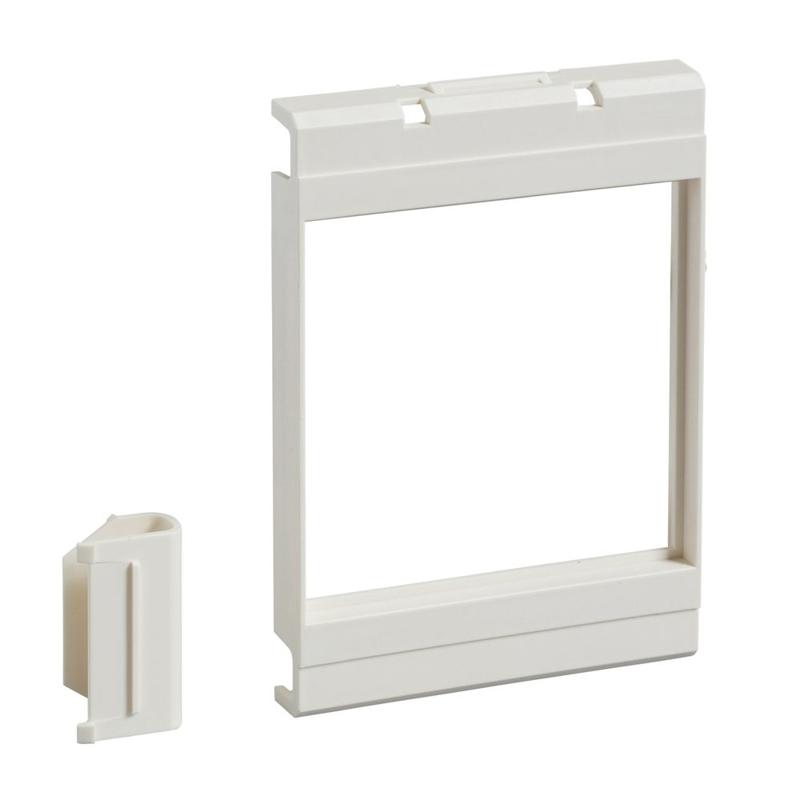

Schneider Electric catalog image for this SKU; may represent the product family.
MOUNTING PLATE
SUPPORT 96X96 METERING DEVICE/PUSH-BUTTON FOR FRONT PLATE 03904/VISOR 03928
SKU 03901Schneider Electric 03901 is a mounting plate in the Prisma P range. Key specifications include net weight: 0.042 kg; product range: Prisma P; product type: Mounting plate.
0.042 kgNet weight
Prisma PProduct range
Mounting plateProduct type
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 03901 |
|---|---|
| Range | Prisma |
| Range of product | Prisma P Prisma G |
| Product or component type | Mounting plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility | Prisma Prisma G enclosure Prisma Prisma P cubicle |
| installation description | Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Cubicle - width 400 mm depth 400 mm Cubicle - width 650 mm depth 400 mm Cubicle duct - width 300 mm depth 400 mm |
| Mounting plate description | Plain |
| Installed device | Human-switchboard interface: HSI |
| Number of vertical modules [50 mm] | 3 module(s): HSI in 600 mm Widefloor-standing enclosure 3 module(s): HSI in 600 mm Widewall-mounted enclosure 3 module(s): HSI in 650 mm Widecubicle 3 module(s): HSI in 300 mm Widecubicle duct 3 module(s): HSI in 400 mm Widecubicle |
| Standards | IEC 61439-2 |
| Product certifications | ASEFA |
| Material | Plastic |
| Colour | White (RAL 9001) |
| Width | 101 mm |
| Height | 150 mm |
| Depth | 15 mm |
| Net weight | 0.042 kg |
| Functional unit | 600 mm Prisma G floor-standing enclosure human-switchboard interface HSI 4 3 600 mm Prisma G wall-mounted enclosure human-switchboard interface HSI 4 3 650 mm 400 mm Prisma P cubicle human-switchboard interface HSI 4 3 300 mm 400 mm Prisma P cubicle duct human-switchboard interface HSI 4 3 400 mm 400 mm Prisma P cubicle human-switchboard interface HSI 4 3 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
