Linergy BS

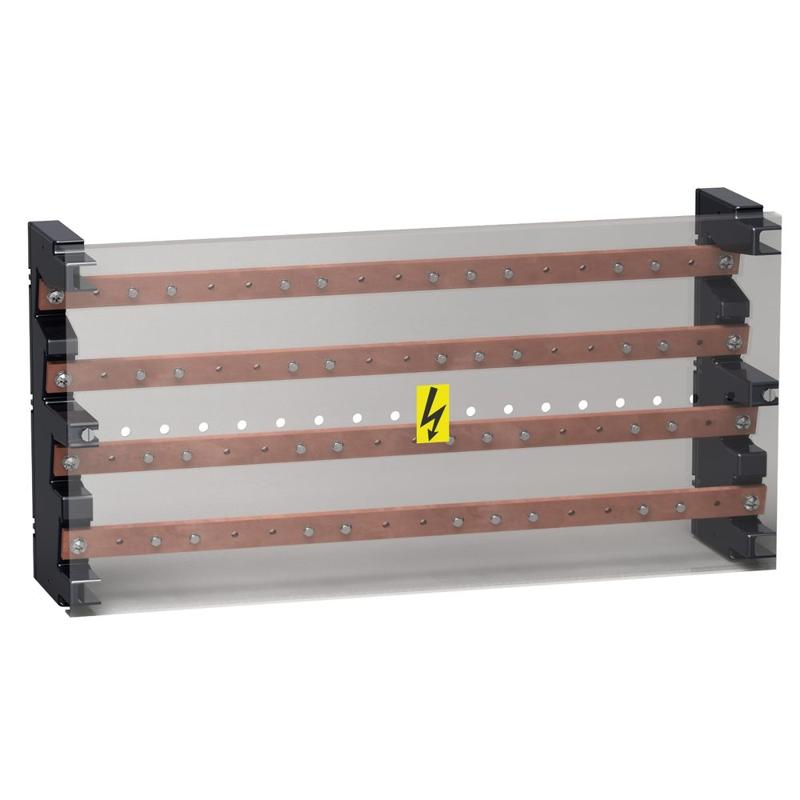

Schneider Electric catalog image for this SKU; may represent the product family.
MULTI-STAGE DISTRIBUTION BLOCK
LINERGY BS 4P MULTISTAGE BB 160A 52HOLES
SKU 04052Schneider Electric 04052 is a multi-stage distribution block in the Linergy BS range. Key specifications include mounting mode: Horizontal; rated current: 160 A at 40 °C; poles: 4P.
HorizontalMounting mode
160 A at 40 °CRated current
4PPoles
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 04052 |
|---|---|
| Range | Linergy |
| Range of product | Linergy |
| Product or component type | Multi-stage distribution block |
| Product name | Linergy BS |
| Range compatibility | Prisma Prisma G enclosure Prisma Prisma P enclosure |
| Product compatibility | Spacial enclosures |
| IP degree of protection | IPxx B |
| Mounting support | Prisma upright Plain backplate |
| Mounting mode | Horizontal Vertical |
| Poles description | 4P |
| [Ue] rated operational voltage | 440 V AC |
| [Ui] rated insulation voltage | 750 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 160 A |
| [In] rated current | 160 A at 40 °C |
| [Icw] rated short-time withstand current | 10 kA for 1 s |
| [Ipk] rated peak withstand current | 30 kA |
| I²t on activation | 100000000 A².s |
| Busbar cross section | 15 x 5 mm |
| Connections - terminals | Supply: crimped lug50 mm² Supply: flexible bars, 20 x 2 mm Distribution: M6 holes (phase) , 13 x 1…50 mm² |
| Height | 235 mm |
| Width | 470 mm |
| Depth | 115 mm |
| Net weight | 2.72 kg |
| Standards | IEC 61439-2 EN/IEC 61439-1 |
| Product certifications | ASEFA |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
