Linergy BS

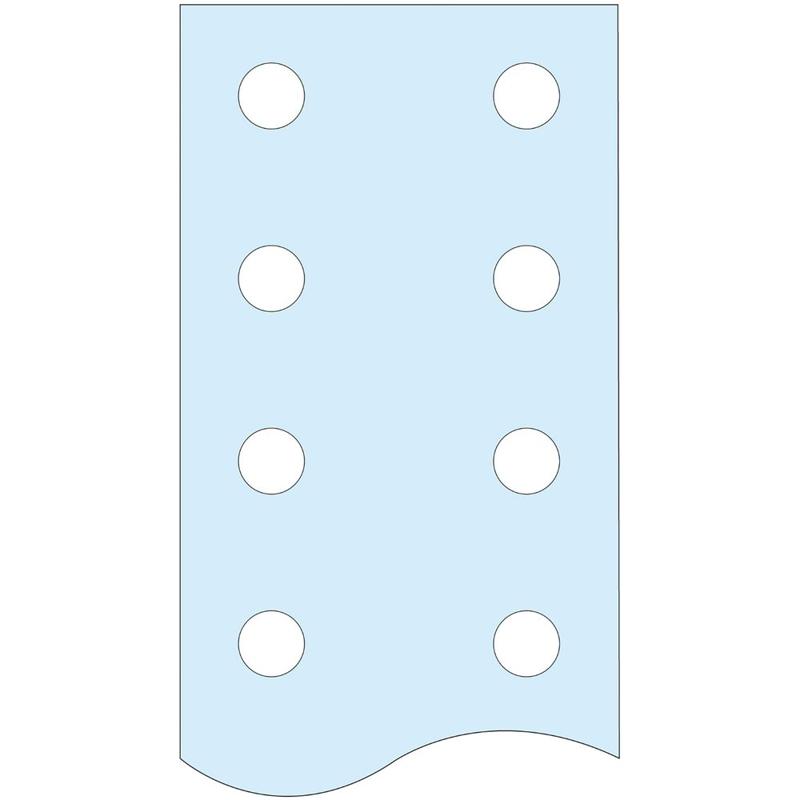

Schneider Electric catalog image for this SKU; may represent the product family.
COPPER BUSBAR
DRILLED VERTICAL FLAT BAR LINERGY BS 80X5 L1675
SKU 04518Schneider Electric 04518 is a copper busbar in the Linergy BS range. Key specifications include quantity per set: Set of 1; net weight: 5.96 kg; product range: Linergy BS.
Set of 1Quantity per set
5.96 kgNet weight
Linergy BSProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 04518 |
|---|---|
| Range | Linergy |
| Range of product | Linergy |
| Product or component type | Copper busbar |
| Product name | Linergy BS |
| Range compatibility | Prisma Prisma P enclosure |
| Busbar description | Flat bar |
| Quantity per set | Set of 1 |
| Installation direction | Vertical, operating position: rear Vertical, operating position: lateral |
| installation description | Cubicle - width 650 mm Cubicle - width 650 + 150 mm |
| [Ie] rated operational current | 1000 A at 35 °C |
| [Icw] rated short-time withstand current | 50 kA (1 s) for 7 supports (rear position) 15 kA (1 s) for 3 supports (lateral position) 30 kA (1 s) for 5 supports (lateral position) 15 kA (1 s) for 3 supports (rear position) 30 kA (1 s) for 5 supports (rear position) 50 kA (1 s) for 7 supports (lateral position) |
| Permissible current | 1000 A at 35 °C: <= IP31 900 A at 35 °C: IP31 |
| Busbar cross section | 80 x 5 mm |
| Length | 1675 mm |
| Height | 1830 mm |
| Width | 150 mm |
| Depth | 20 mm |
| Net weight | 5.96 kg |
| Type of busbar connection | Ø 10 mm drilled hole |
| Connection pitch | Connection each 25 mm |
| support thickness | 5 mm |
| Standards | IEC 61439-1 IEC 61439-2 |
| Product certifications | ASEFA |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
