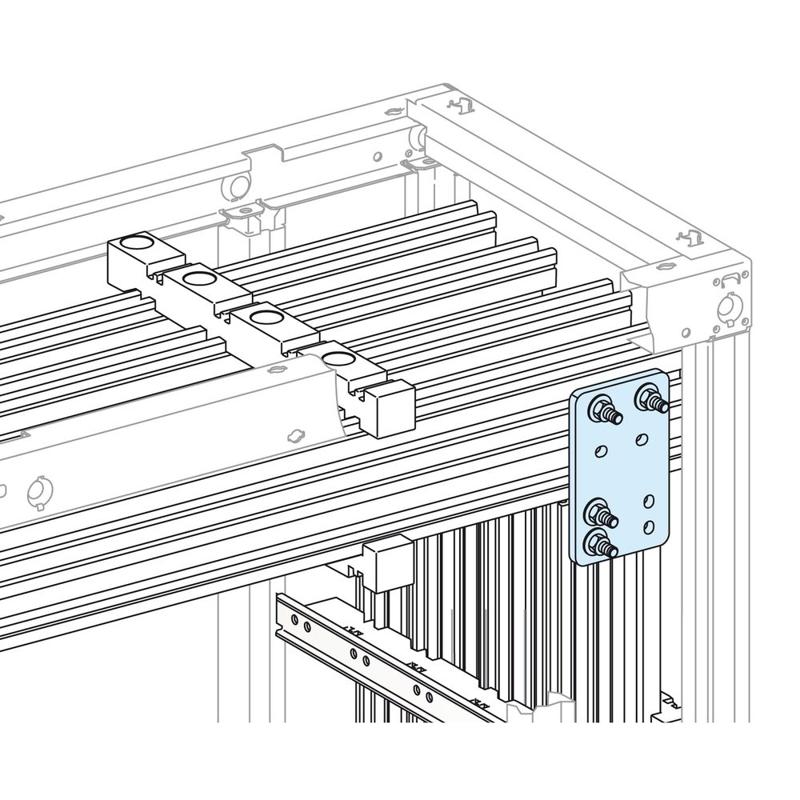

Schneider Electric catalog image for this SKU; may represent the product family.
CONNECTION
LINERGY LGYE VERT. LONG CONNECT. 2500A
SKU 04605Schneider Electric 04605 is a connection in the Prisma Prisma P enclosure range. Key specifications include quantity per set: Set of 1; rated current: 2500 A; net weight: 1.6 kg.
Set of 1Quantity per set
2500 ARated current
1.6 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 04605 |
|---|---|
| Range | Linergy |
| Range of product | Linergy |
| Product or component type | Connection |
| Product name | Linergy LGYE |
| product name | Prisma Prisma P enclosure Linergy Linergy LGYE busbar |
| Provided equipment | Fixing frame Fixing elements |
| Standards | IEC 61439-2 IEC 61439-1 |
| Cubicle-device connection | Linergy busbar |
| Installed device | Connection: busbar vertical installation - top connection |
| [Ie] rated operational current | 2500 A |
| [In] rated current | 2500 A |
| Height | 170 mm |
| Width | 100 mm |
| Depth | 4 mm |
| Net weight | 1.6 kg |
| Quantity per set | Set of 1 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
