Prisma G

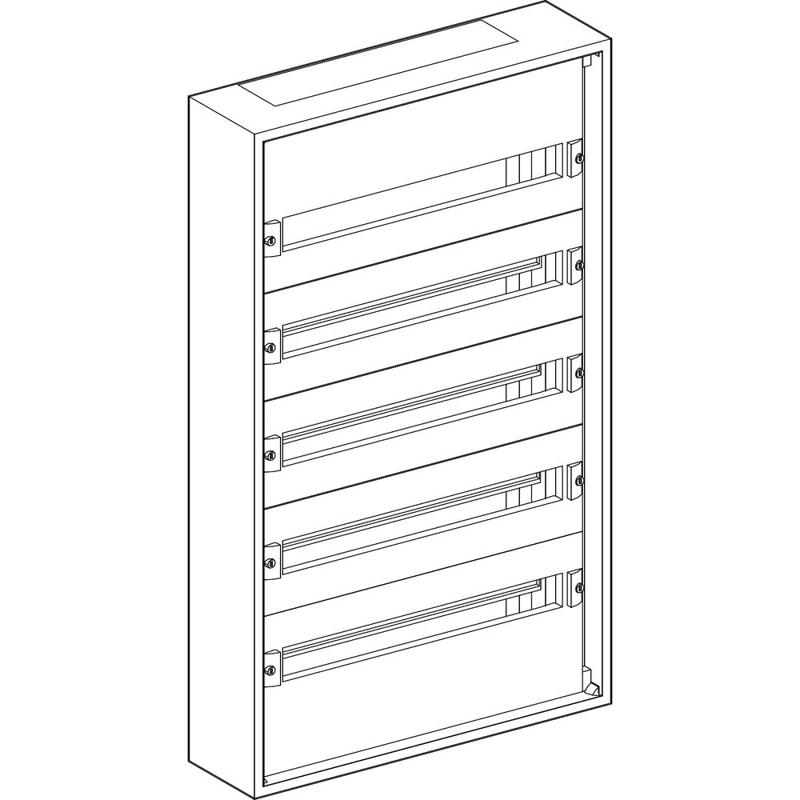

Schneider Electric catalog image for this SKU; may represent the product family.
ENCLOSURE
WALL-MOUNTED ENCLOSURE 5 ROWS PRISMA PACK 160 IP30
SKU 08005Schneider Electric 08005 is a enclosure in the Prisma G range. Key specifications include quantity per set: Set of 1; rated current: 160 A at 40 °C conforming to IEC 61439-2; ip protection: IP30 with door.
Set of 1Quantity per set
160 A at 40 °C conforming to IEC 61439-2Rated current
IP30 with doorIP protection
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 08005 |
|---|---|
| Range | Prisma |
| Range of product | Prisma G |
| Product or component type | Enclosure |
| Enclosure type | Modular enclosure |
| Enclosure/cubicle description | Wall-mounted enclosure - width 555 mm |
| Enclosure mounting | Surface Flush with kit |
| Provided equipment | 1 x enclosure 1 x earthing kit 5 x front plate 5 x modular rail |
| type of front plate | Modular |
| Number of vertical modules [50 mm] | 15 |
| Number of horizontal rows | 5 |
| Number of 18 mm modules per row | 24 |
| Standards | IEC 62208 IEC 61439-3 IEC 61439-1 IEC 61439-2 |
| [Ui] rated insulation voltage | 750 V on main rear busbars conforming to IEC 61439-2 |
| Network frequency | 50/60 Hz |
| [In] rated current | 160 A at 40 °C conforming to IEC 61439-2 |
| [Icw] rated short-time withstand current | 25 kA 1 s conforming to IEC 61439-2 |
| [Ipk] rated peak withstand current | 53 kA conforming to IEC 61439-2 |
| Electrical insulation class | Class I |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish | Smooth Matt |
| Colour | White (RAL 9001) |
| Width | 555 mm |
| Height | 930 mm |
| Depth | 157 mm |
| Net weight | 14.86 kg |
| Quantity per set | Set of 1 |
| IP degree of protection | IP30 with door IP31 with door and canopy IP43 with door, canopy and IP43 gasket IP30 without door |
| IK degree of protection | IK07 without door conforming to EN/IEC 62262 IK08 with door |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
