Prisma G

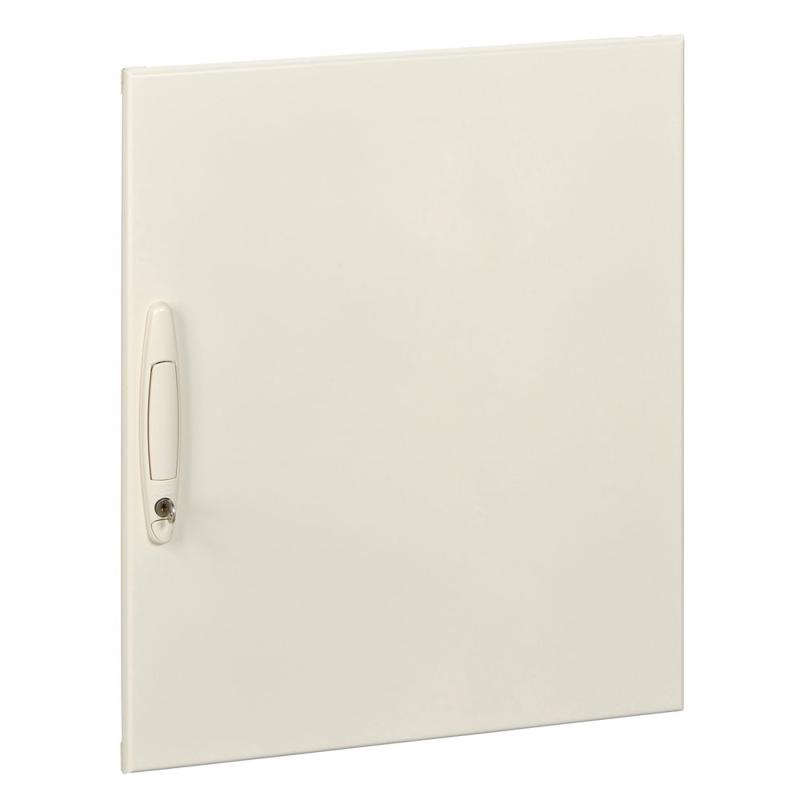

Schneider Electric catalog image for this SKU; may represent the product family.
DOOR
PLAIN DOOR 6R PACK 160
SKU 08086Schneider Electric 08086 is a door in the Prisma G range. Key specifications include quantity per set: Set of 1; ip protection: IP30; net weight: 6.12 kg.
Set of 1Quantity per set
IP30IP protection
6.12 kgNet weight
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 08086 |
|---|---|
| Range | Prisma |
| Range of product | Prisma G |
| Product or component type | Door |
| Range compatibility | Prisma Prisma G enclosure |
| Provided equipment | door handle keylock (key 405) other keylock and insert to be ordered separately 2 hinge |
| Enclosure mounting | Flush with kit Surface |
| type of door | Plain |
| IP degree of protection | IP30 |
| installation description | Pack enclosure - width 555 mm |
| Door opening side | Reversible |
| Number of locks | 1 |
| door opening angle | 130 ° |
| Number of 18 mm modules per row | 24 |
| Total number of 18 mm modules | 144 |
| Number of vertical modules [50 mm] | 21 |
| Number of horizontal rows | 6 |
| Enclosure material | Treated sheet steel |
| Quantity per set | Set of 1 |
| Height | 1080 mm |
| Width | 550 mm |
| Depth | 22 mm |
| Net weight | 6.12 kg |
| Surface finish | Matt Smooth |
| Colour | White (RAL 9001) |
| IK degree of protection | IK08 conforming to EN/IEC 62262 |
| Standards | IEC 61439-2 IEC 61439-1 |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
