Acti9 MIN

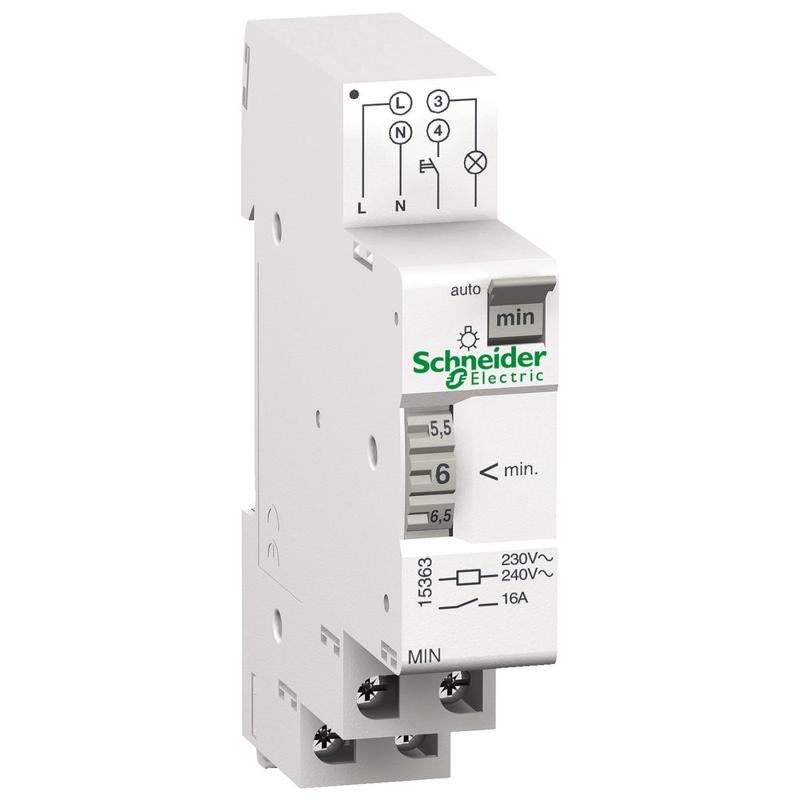

Schneider Electric catalog image for this SKU; may represent the product family.
ELECTROMECHANICAL TIMER
Acti9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes
SKU 15363Schneider Electric 15363 is a electromechanical timer in the Acti9 MIN range. Key specifications include operational voltage: 230 V AC at 50 Hz; mounting support: DIN rail; ip protection: IP20 B.
230 V AC at 50 HzOperational voltage
DIN railMounting support
IP20 BIP protection
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 15363 |
|---|---|
| range of product | Acti9 |
| Product name | Acti9 MIN |
| Device short name | MIN |
| Product or component type | Electromechanical timer |
| Colour tint | White (RAL 9003) |
| Device application | Building |
| Load type | Parallel-corrected fluorescent tube 14 x 40 W 4.7 µF Parallel-corrected fluorescent tube 10 x 58 W 7 µF Parallel-corrected fluorescent tube 3.0 x 100 W 18 µF 230 V AC halogen lamp 2300 W 230 V AC incandescent lamp 2300 W Fluocompact lamp 2300 VA Compact fluorescent lamp 21 x 7 W Compact fluorescent lamp 13 x 11 W Compact fluorescent lamp 10 x 15 W Compact fluorescent lamp 7 x 20 W LED lamp < 2 W 30 W LED lamp >= 2 W 300 W |
| Power consumption in VA | 1 VA |
| Maximum switching current | 16 A - 230 V AC pf = 1 |
| [Ue] rated operational voltage | 230 V AC at 50 Hz |
| Time delay | Adjustable from 1 to 7 minutes |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Connections - terminals | Screw terminals - <= 6 mm² |
| Width | 18 mm |
| Height | 83 mm |
| Depth | 68 mm |
| Net weight | 84 g |
| Ambient air temperature for operation | -10…50 °C |
| IP degree of protection | IP20 B |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
