ABBPS1-2-0-65

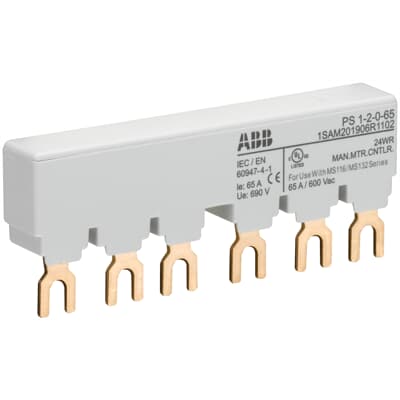

ABB catalog image for this SKU; may represent the product family.
PHASE BUSBAR
PS1-2-0-65
SKU 1SAM201906R1102ABB PS1-2-0-65: Phase busbar.
PS1-2-0-65Product range
Phase busbarProduct type
1SAM201906R1102Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SAM201906R1102 |
|---|---|
| Catalog Description | PS1-2-0-65 3-phase busbar for 2 MS116 / MS132, Ie=65A |
| Configuration Only | No |
| Country of Origin | Germany |
| Criticality | No |
| Lead Time | 19 day 0 day 47 day |
| Made To Order | No |
| Note | No |
| Product Availability Class | Standard delivery time |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | BRAPR001EXPU CHNOR001EXPU CLABB001EXPU CNIAB001EXPU COABB001EXPU DEAPRMLCEXPU DKSER001EXPU DUABB001EXPU DUABB003EXPU EESER001EXPU EGAUT001EXPU ESATD001EXPU FISER001EXPU FRAUT001EXPU GBINS001EXPU GRABB001EXPU INABB039EXPU INABBRLCEXPU ITIND002EXPU NLABB021EXPU NOATDRLCEXPU SGIND002EXPU TRDMD001EXPU USABB251EXPU USSVCEXPU ZATAD021EXPU |
| Storage Location | 4001 |
| Warranty Return | Product under warranty must be returned |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC131011M6802 2CDC131034M6801 2CDC131022M6802 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 1SAM200450F0001 |
| Product Net Width | 86.5 mm |
| Product Net Height | 32.3 mm |
| Product Net Depth / Length | 13 mm |
| Product Net Weight | 0.034 kg |
| Rated Operational Voltage | 690 V AC 250 V DC |
| Rated Operational Current (Ie) | 65 A |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Degree of Protection | IP20 |
| Pollution Degree | 3 |
| Standards | IEC/EN 60947-1 IEC/EN 60947-4-1 UL 60947-1 UL 60947-4-1 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Ambient Air Temperature | Operation -25 ... +70 °C Storage -50 ... +80 °C |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| UL Certificate | E121190-20000619 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 120 mm |
| Package Level 1 Height | 46 mm |
| Package Level 1 Gross Weight | 0.37 kg |
| Package Level 1 EAN | 4013614488061 |
| Package Level 2 EAN | 4013614581922 |
| IDEA Granular Category Code (IGCC) | 4378 >> Phase buss bar |
| E-Number (Finland) | 3705948 |
| E-Number (Norway) | 4364000 |
| E-Number (Sweden) | 3111675 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
