ABBS1-M2-25
ABB catalog image for this SKU; may represent the product family.

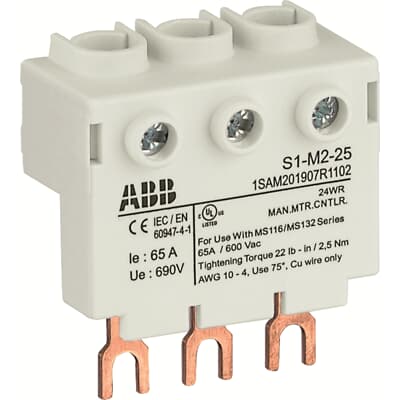

MAIN LINE BRANCH TERMINAL
S1-M2-25
SKU 1SAM201907R1102ABB S1-M2-25: Main line branch terminal. Pole configuration: 3P.
3PPoles
S1-M2-25Product range
Main line branch terminalProduct type
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SAM201907R1102 |
|---|---|
| Catalog Description | S1-M2-25 3-phase power infeed block High, for MS116 / MS132, 25mm2 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369010 |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC131011M6802 2CDC131034M6801 2CDC131022M6802 |
| Instructions and Manuals (Part 3) | 1SBC100214C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 1SAM200451F0002 |
| Product Net Width | 48 mm |
| Product Net Height | 53.8 mm |
| Product Net Depth / Length | 27 mm |
| Product Net Weight | 0.051 kg |
| Rated Operational Voltage | 690 V AC 250 V DC |
| Rated Operational Current (Ie) | 65 A |
| Number of Poles | 3P |
| Degree of Protection | IP20 |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 16 mm² Flexible with Insulated Ferrule 1x 2.5 ... 16 mm² Flexible 1x 2.5 ... 16 mm² Rigid 1x 2.5 ... 25 mm² |
| Tightening Torque | Main Circuit 2.5 N·m |
| Wire Stripping Length | Main Circuit 10 mm |
| Recommended Screw Driver | M3.5 Pozidriv 2 |
| Standards | IEC/EN 60947-1 IEC/EN 60947-4-1 UL 60947-1 UL 60947-4-1 |
| Remarks | High |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 12-6 AWG Stranded 1x 12-4 AWG |
| Tightening Torque UL/CSA | Main Circuit 22 in·lb |
| Ambient Air Temperature | Operation -25 ... +70 °C Storage -50 ... +80 °C |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Declaration | 1SAA963006-4501 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | c9a7b34a-b576-4ffb-bc35-7c20d4043a93 Germany |
| Simplified SCIP | 0794b7d8-1084-42ad-9c8e-70d4bc74c524 Netherlands 217b3421-b482-408a-8fb8-7ed966c21864 Germany 2ee11089-22d1-48da-855d-d099a750be57 Bulgaria 5df4c7db-4b98-4da1-bb13-ea2f4acdc8dc Estonia 64907b9b-6e6c-49ef-a543-ed24a4fa10b0 Norway 71b2103a-ad6a-441d-96bf-d71d95e14fbe France 74bd2670-912c-46c7-885c-e99c97f45dfd Croatia 8ad0e64c-d8fc-49e5-b715-9f7f754090a2 Portugal 8fd0cf82-e184-4f2f-842f-8709f0f2e629 Poland 919653db-7c71-41f9-add0-b7e67da56a18 Sweden 9ce506d2-09e3-4e04-8c74-9a5227c4ad94 Czechia 9ef1f0ce-ed8e-4d9b-aff2-2a7be739247e Hungary bad14363-46f1-4818-9519-f0a95369c43d Denmark bbc3e17b-8bc5-4a9b-b491-154ebc8d70f8 Greece c3beb32c-5829-41c2-a7be-3e5f7dd1c601 Spain e2464d21-6971-4059-8ee2-f4116e344542 Finland e3357e40-0b29-4053-87c0-50909e0f6aeb Belgium fc5cf2f7-353e-4312-aef5-b0c454ba6dcb Italy |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| UL Certificate | E121190-20000619 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 80 mm |
| Package Level 1 Depth / Length | 181 mm |
| Package Level 1 Height | 46 mm |
| Package Level 1 Gross Weight | 0.548 kg |
| Package Level 1 EAN | 4013614488191 |
| IDEA Granular Category Code (IGCC) | 4378 >> Phase buss bar |
| E-Number (Finland) | 3705941 |
| E-Number (Norway) | 4364013 |
| E-Number (Sweden) | 3111688 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
