ABBC2SS3-10B-10

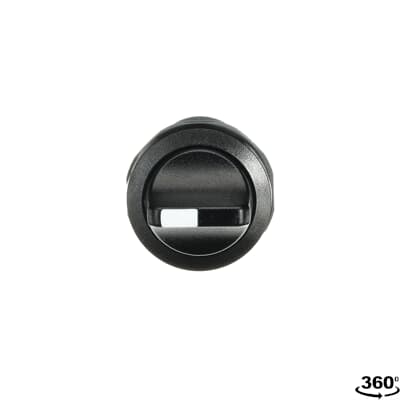

ABB catalog image for this SKU; may represent the product family.
SELECTOR SWITCH
C2SS3-10B-10
SKU 1SFA619202R1016ABB C2SS3-10B-10: Selector Switch.
C2SS3-10B-10Product range
Selector SwitchProduct type
1SFA619202R1016Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SFA619202R1016 |
|---|---|
| Catalog Description | C2SS3-10B-10 Selector Switch |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536508000 |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Product Net Width | 30 mm |
| Product Net Height | 30 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Weight | 0.02 kg |
| Ambient Air Temperature | Operation -25 ... +70 °C Storage -40 ... +85 °C |
| Color | Black |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Momentary |
| Sub-Function | 2-position |
| Spring Return From | C to B |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Enclosure Type NEMA | Type1 Type12 Type13 Type3R Type4 Type4X |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 ... 300 V Maximum 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A (220 / 240 V) 2 A |
| Power Loss | Maximum 3.5 W |
| Mechanical Durability | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm² Flexible with Ferrule 2 x 0.5...1.5 mm² Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² Flexible 1 x 0.5 ...1.5 mm² Flexible 2 x 0.5 ...1.5 mm² Solid 1 x 0.5...1.5 mm² Solid 2 x 0.5...1.5 mm² |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
| Connecting Capacity UL/CSA | 1x 22...14 AWG 2x 22...14 AWG |
| Degree of Protection | Front IP66 Front IP67 Front IP69K Terminals IP20 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| CB Certificate | CQC_CN_CN50749 |
| CCC Certificate | 2024010305654692 |
| CQC Certificate | CQC2003010305054693 |
| cURus Certificate | UL_E496500-20171020 |
| Declaration of Conformity - CE | 2CMT2015-005451 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | 9AKK107046A3749 |
| EAC Certificate | RU C-CN.ME77.B.00587/20 |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 235 mm |
| Package Level 1 Depth / Length | 125 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.2 kg |
| Package Level 1 EAN | 7320500246276 |
| IDEA Granular Category Code (IGCC) | 5215 >> Selector Switch Complete Assemblies |
| E-Number (Finland) | 2312883 |
| E-Number (Sweden) | 3705552 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
