ABB65P18X32

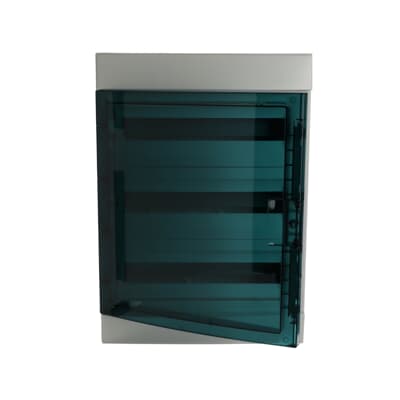

ABB catalog image for this SKU; may represent the product family.
SMALL DISTRIBUTION BOARD
65P18X32
SKU 1SL1208A00ABB 65P18X32: Small distribution board.
65P18X32Product range
Small distribution boardProduct type
1SL1208A00Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SL1208A00 |
|---|---|
| ABB Type Designation | Mistral65 |
| Catalog Description | Consumer unit MISTRAL65, Surface mounting, 54 modules, 3 row(s), IP65, Door: Single, Plastic, Transparent, Dimensions: 600 mm x 430 mm x 155 mm |
| Number of Line Terminals | 0 |
| Number of Rows | 3 |
| Closure Type | Snap Function |
| Configuration Type | assembled with device carrier |
| Cover Plate Type | Door |
| Door Type | Single |
| Door Surface Finishing | Transparent |
| Accessories Available | Yes |
| DIN Place Units | 54 |
| Terminal Type | No Terminals |
| Glow Wire Test | 650 |
| Power Loss | Δt = 30K - Enclosures 63 W |
| Enclosure Material | thermoplastic |
| Housing Material | Plastic |
| Door Material | Plastic |
| Transparent Door | Yes |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Light grey |
| Number of Modules | 54 |
| RoHS Declaration | 9AKK108468A2427 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20221015 |
| REACH Declaration | 9AKK108469A7731 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Degree of Protection | IP65 |
| Protection Class | Isolated (Class II) |
| Environmental Information | 1SLC801013D0201 |
| Width in Number of Modular Spacings | 18 |
| Product Net Width | 430 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 155 mm |
| Product Net Weight | 4.35 kg |
| Built-In Depth (t2) | 98 mm |
| Building Information Modeling – BIM | 9AKK107046A8397 |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Width | 448 mm |
| Package Level 1 Height | 178 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 5.15 kg |
| Package Level 1 EAN | 8000126098167 |
| Minimum Order Quantity | 1 piece |
| E-Number (Norway) | 1700241 |
| Declaration of Conformity - CE | 9AKK108468A2427 |
| Instructions and Manuals | 9AKK108468A8244 |
| Data Sheet, Technical Information | 1SLC801013D0201 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
