ABBCP-T

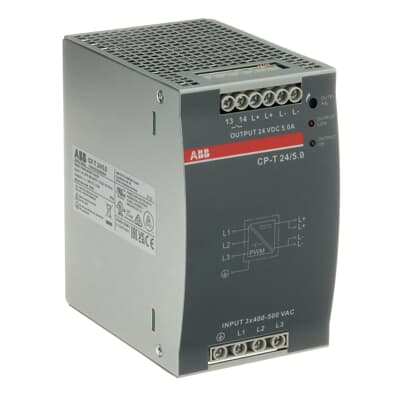

ABB catalog image for this SKU; may represent the product family.
DC-POWER SUPPLY
CP-T 24/5.0
SKU 1SVR427054R0000ABB CP-T 24/5.0: DC-power supply.
CP-TProduct range
DC-power supplyProduct type
1SVR427054R0000Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 09, 2026.
| Product ID | 1SVR427054R0000 |
|---|---|
| Catalog Description | CP-T 24/5.0 Power supply In: 3x400-500VAC Out: 24VDC/5.0A |
| Country of Origin | India |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB015EXPU |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044095 |
| Replacement Product ID (NEW) | ABB1SVR340567R1000 |
| Data Sheet, Technical Information | 2CDC114067D0201 |
| Instructions and Manuals | 1SVC427053M0001 |
| Product Net Width | 74 mm |
| Product Net Height | 131 mm |
| Product Net Depth / Length | 119 mm |
| Product Net Weight | 0.78 kg |
| Package Level 1 Width | 161 mm |
| Package Level 1 Depth / Length | 86 mm |
| Package Level 1 Height | 164 mm |
| Package Level 1 Gross Weight | 0.892 kg |
| Package Level 1 EAN | 4016779697866 |
| Package Level 1 Units | box 1 piece |
| Function | Switch mode power supply |
| Number of Phases | 3-phase |
| Rated Input Voltage (UIN) | 3x 400 ... 500 V AC |
| Input Voltage (Uin) | 3 x 340 ... 575 V AC 480 ... 820 V DC |
| Rated Frequency (f) | 50 Hz |
| Rated Frequency Limits | 47 ... 63 Hz |
| Characteristic of Output | Hiccup-Mode |
| Rated Output Power | 120 W |
| Output Power | 120 W |
| Rated Output Voltage | 24 V DC |
| Output Voltage (Uout) | 24 V DC |
| Rated Output Current | 5 A |
| Output Current | 5 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 6 kV Input Circuit / PE 4 kV Input Circuit / Relay Contact 4 kV Output Circuit / PE 0.8 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 500 V Input Circuit / PE 500 V Input Circuit / Relay Contact 500 V Output Circuit / PE 50 V |
| Degree of Protection | Housing IP20 Terminals IP20 |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.2 ... 4 mm² Rigid 0.2 ... 6 mm² |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.2 ... 4 mm² Rigid 0.2 ... 6 mm² |
| Tightening Torque | Auxiliary Circuit 1 N·m Input Circuit 1 N·m Output Circuit 0.6 N·m |
| Wire Stripping Length | Input Circuit 8 mm Output Circuit 8 mm |
| Recommended Screw Driver | PH2 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal 25 mm Electrical Conductive Board, Vertical 25 mm Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm |
| Mounting Position | 1 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | ANSI/ISA-12.12 CAN/CSA C22.2 No.107.1 CAN/CSA C22.2 No.213 CAN/CSA C22.2 No.60950 IEC/EN 63000 IEC 60950-1 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 UL 60950 |
| Connecting Capacity Input Circuit UL/CSA | Rigid 24-10 AWG |
| Connecting Capacity Output Circuit UL/CSA | Rigid 24-10 AWG |
| Tightening Torque UL/CSA | Input Circuit 9 in·lb Output Circuit 5.5 in·lb |
| Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 | Level 4 Air Discharge 15 kV Level 4 Contact Discharge 8 kV |
| Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 | Level 3 10 V/m |
| Surge Immunity acc. to IEC 61000-4-5 | Level 3 Line-to-Line 2 kV Level 4 Line-to-Line 4 kV |
| Conducted Disturbances Immunity acc. to IEC 61000-4-6 | Level 3 10 V |
| Electromagnetic Compatibility (EMC) | Immunity - Class B Emission - Environment B |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | 5000 m |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SVD982001-4501 |
| RoHS Declaration | 1SVD982001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006535 |
| Environmental Product Declaration - EPD | No Declaration Needed |
| CQC Certificate | CQC_10001048915 |
| cUL Certificate | cUL508_E174460 |
| cUR Certificate | cUR60950_E196145 cUR_ANSI_E317914 |
| Declaration of Conformity - CE | 1SVD982006-00 |
| UL Certificate | UL508_E174460 |
| UR Certificate | UR60950_E196145 UR_ANSI_E317914 |
| E-Number (Finland) | 2712069 |
| E-Number (Norway) | 6609470 |
| E-Number (Sweden) | 5218717 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
