NR100...250

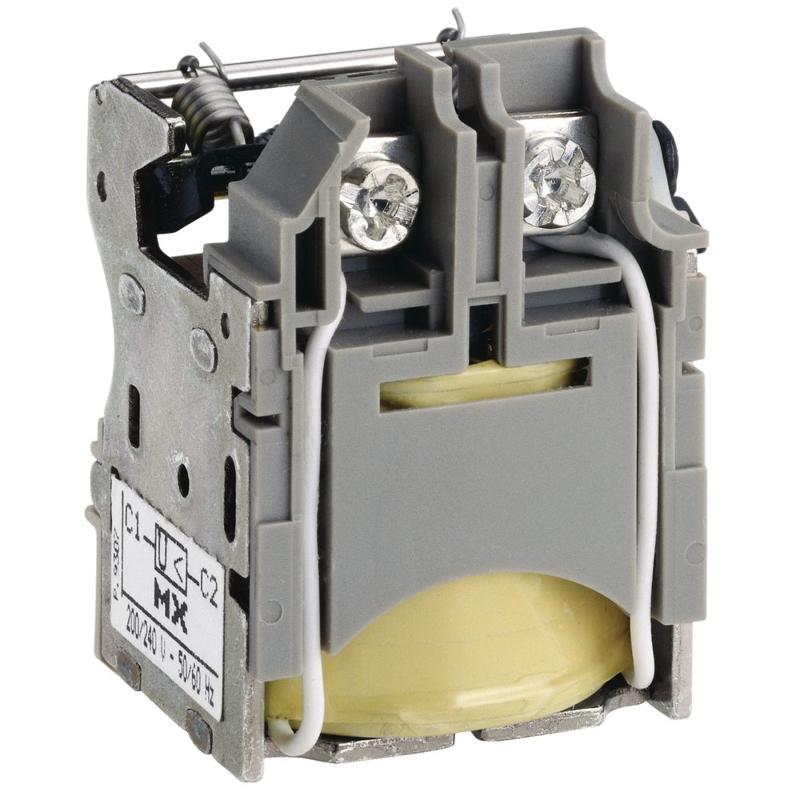

Schneider Electric catalog image for this SKU; may represent the product family.
VOLTAGE RELEASE
voltage release Compact MX - 125 V DC
SKU 29393Schneider Electric 29393 is a voltage release in the NR100...250 range. Key specifications include control voltage: 125 V DC; product range: NR100...250; product type: Voltage release.
125 V DCControl voltage
NR100...250Product range
Voltage releaseProduct type
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 29393 |
|---|---|
| Range | ComPact |
| Range of product | NR100...250 NR400...630 NS125E NS400...630 NSJ400...600 NB400...600 NSF150...250 NS100...250 NS400...630 DC NS100...250 DC |
| Device short name | MX |
| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Shunt trip release |
| [Uc] control circuit voltage | 125 V DC |
| Range compatibility | ComPact ComPact NS ComPact Compact NB ComPact Compact NR ComPact Compact NSF ComPact Compact NSJ |
| Operating threshold | 0.7...1.1 x Un |
| Control signal type | Maintained Impulse |
| Impulse duration | >= 20 ms |
| Auxiliary connection terminal | Screw terminal 0…1.5 mm² |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
