ABBE214-25-202

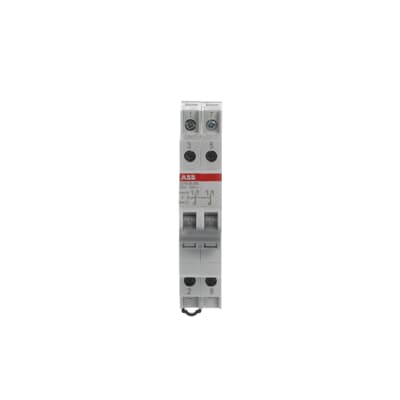

ABB catalog image for this SKU; may represent the product family.
MAIN SWITCH FOR DISTRIBUTION BOARD
E214-25-202
SKU 2CCA703031R0001ABB E214-25-202: Main switch for distribution board. Rated current: 25 A. Pole configuration: 2P.
25 ARated current
2PPoles
E214-25-202Product range
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CCA703031R0001 |
|---|---|
| Catalog Description | Group Switch, 25 A, acc. to EN 250 V AC, 0NO, 0NC, 2CO, El. Color: Grey, MW: 1 |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 3 kA |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 |
| Number of Poles | 2P |
| Tightening Torque | 1.2-1.5 N·m |
| Switch Type | Group |
| Material of Conductor | Copper |
| Remarks | Sealable in the On and Off positions |
| Cover Color | Grey |
| Connecting Capacity | Solid 1x1…6 mm² Solid 2x2.5 mm² Flexible 1x0.75…2x2.5 mm² |
| Rated Voltage (Ur) | Minimum 250 V |
| Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC |
| Input Voltage Type | AC |
| Rated Current (In) | 25 A |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 0.88 W |
| Number of Contacts CO | 2 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Number of Auxiliary Contacts CO (SPDT) | 2 |
| Control Element Color | Grey |
| RoHS Declaration | 9AKK108472A5566 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260417 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260414 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Degree of Protection | IP20 |
| Environmental Information | 2CCC441003C0201 |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 18 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 87 g |
| Built-In Depth (t2) | 68 mm |
| EPLAN Data | 9AAC407653_EPLAN |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 96 mm |
| Package Level 1 Height | 76 mm |
| Package Level 1 Depth / Length | 185 mm |
| Package Level 1 Gross Weight | 966 g |
| Package Level 1 EAN | 7612270938766 |
| Minimum Order Quantity | 10 piece |
| E-Number (Finland) | 3602421 |
| E-Number (Norway) | 1429751 |
| E-Number (Switzerland) | 437262238 |
| CB Certificate | 9AKK108466A3845 |
| CCC Certificate | 9AKK108466A3832 |
| Declaration of Conformity - CE | 2CCC441014D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6137 |
| VDE Certificate | 9AKK107991A9822 |
| Instructions and Manuals | No document needed |
| Data Sheet, Technical Information | 2CCC441003C0101 |
| Standards | EN60669-1 VDE0632-1 IEC60068-2-2 IEC60068-2-1 IEC60068-2-38 UL508 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
