ABBE215-16-11B

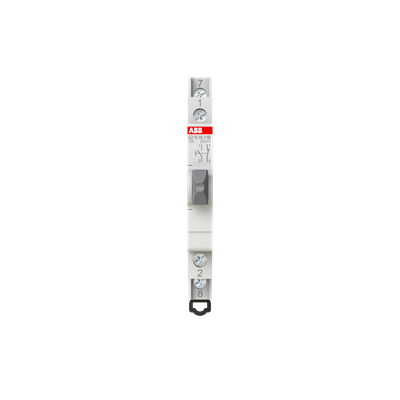

ABB catalog image for this SKU; may represent the product family.
PUSH BUTTON FOR DISTRIBUTION BOARD
E215-16-11B
SKU 2CCA703150R0001ABB E215-16-11B: Push button for distribution board. Rated current: 16 A. Pole configuration: 2P.
16 ARated current
2PPoles
E215-16-11BProduct range
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CCA703150R0001 |
|---|---|
| Catalog Description | Pushbutton, 16 A, acc. to EN 250 V AC, 1NO, 1NC, El. Color: Grey, MW: 0.5 |
| Maximum Switching Voltage | 250 V |
| Number of Main Contacts NC | 1 |
| Number of Main Contacts NO | 1 |
| Number of Poles | 2P |
| Tightening Torque | 1.2-1.5 N·m |
| Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper |
| Remarks | Sealable in the On and Off positions |
| Connecting Capacity | Solid 1x1…6 mm² Solid 2x2.5 mm² Flexible 1x0.75…2x2.5 mm² |
| Rated Voltage (Ur) | Lamp 48 ... 48 V |
| Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC |
| Rated Current (In) | 16 A |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 0.5 W |
| Power Watt | 0.72 W |
| Number of Contacts NC | 1 |
| Number of Contacts NO | 1 |
| Number of Auxiliary Contacts CO (SPDT) | 0 |
| Color | Grey |
| Control Element Color | Grey |
| RoHS Declaration | 9AKK108472A5566 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260417 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260414 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Degree of Protection | IP20 |
| Environmental Information | 2CCC441003C0201 |
| Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 9 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 49 g |
| Built-In Depth (t2) | 75 mm |
| EPLAN Data | 9AAC407653_EPLAN |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 96 mm |
| Package Level 1 Height | 76 mm |
| Package Level 1 Depth / Length | 95 mm |
| Package Level 1 Gross Weight | 496 g |
| Package Level 1 EAN | 7612270938810 |
| Minimum Order Quantity | 10 piece |
| E-Number (Finland) | 2312345 |
| E-Number (Norway) | 1429790 |
| E-Number (Sweden) | 2102801 |
| E-Number (Switzerland) | 467560238 |
| CB Certificate | 9AKK108466A3845 |
| CCC Certificate | 9AKK108466A3830 |
| Declaration of Conformity - CE | 2CCC441014D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6137 |
| VDE Certificate | 9AKK107991A9822 |
| Instructions and Manuals | No document needed |
| Data Sheet, Technical Information | 2CCC441003C0101 |
| IDEA Granular Category Code (IGCC) | 5210 >> Push button switch |
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 60669-1 VDE 0632-1 UL508 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
