ABBE219-3CDE

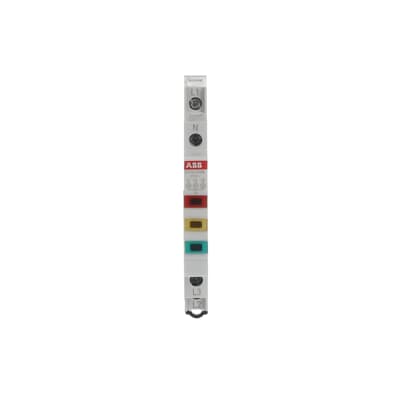

ABB catalog image for this SKU; may represent the product family.
INDICATOR LIGHT FOR DISTRIBUTION BOARD
E219-3CDE
SKU 2CCA703902R0001ABB E219-3CDE: Indicator light for distribution board. Rated current: 16 A.
16 ARated current
E219-3CDEProduct range
Indicator light for distribution boardProduct type
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CCA703902R0001 |
|---|---|
| Catalog Description | Indicator Light, 16 A, 415 / 230 V AC, 3LED, Red / Yellow / Green, MW: 0.5 |
| Number of LEDs | 3 |
| Tightening Torque | 1.2-1.5 N·m |
| Lamp Type | LED |
| Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper |
| Remarks | Sealable in the On and Off positions |
| Lamp Color | Red / Yellow / Green |
| Connecting Capacity | Solid 1x1…6 mm² Solid 2x2.5 mm² Flexible 1x0.75…2x2.5 mm² |
| Service Life | LED Indicator 50000 hour |
| Short-Circuit Current Rating (SCCR) | 3 kA |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 415 / 230 V AC |
| Rated Insulation Voltage (Ui) | 250 V |
| Voltage Range | 230 ... 415 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Auxiliary Voltage AC/DC | LED Indicator 230…415 V AC |
| Input Voltage Type | AC |
| Rated Current (In) | 16 A |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 0.47-1 W |
| Power Watt | 1.2 W |
| Color | Red, yellow, green |
| RoHS Declaration | 9AKK108472A5566 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260417 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260414 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Degree of Protection | IP20 |
| Environmental Information | 2CCC441002C0201 |
| Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 9 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 47 g |
| Built-In Depth (t2) | 59 mm |
| EPLAN Data | 9AAC407653_EPLAN |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 96 mm |
| Package Level 1 Height | 76 mm |
| Package Level 1 Depth / Length | 95 mm |
| Package Level 1 Gross Weight | 528 g |
| Package Level 1 EAN | 7612271413323 |
| Minimum Order Quantity | 10 piece |
| E-Number (Finland) | 2312367 |
| E-Number (Norway) | 1426461 |
| E-Number (Switzerland) | 472551838 |
| CB Certificate | 9AKK108466A3847 |
| Declaration of Conformity - CE | 2CCC441015D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6138 |
| VDE Certificate | 9AKK108466A3837 |
| Instructions and Manuals | No document needed |
| Data Sheet, Technical Information | 2CCC441003C0101 |
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 62094-1 UL508 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
