ABBS804PV

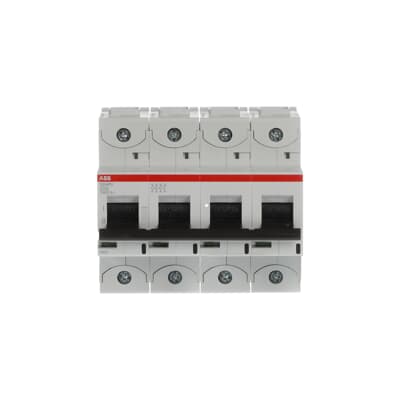

ABB catalog image for this SKU; may represent the product family.
MINIATURE CIRCUIT BREAKER
S804PV-SD32
SKU 2CCF019640R0001ABB S804PV-SD32: Miniature circuit breaker. Rated current: 32 A. Pole configuration: 4P.
32 ARated current
4PPoles
S804PVProduct range
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CCF019640R0001 |
|---|---|
| Catalog Description | S804PV-SD32 High Performance MCB |
| Rated Current (In) | 32 A |
| Number of Poles | 4P |
| Rated Operational Voltage | 1500 V DC |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1500 V DC) 5 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1500 V DC) 5 kA |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Standards | IEC/EN 60947-3 |
| Power Loss | Total 7.2 W at Rated Operating Conditions per Pole 1.8 W |
| Degree of Protection | Front IP20 |
| Ambient Air Temperature | Operation -40 ... 70 °C Storage -40 ... 70 °C |
| Connecting Capacity | Flexible 0...50 mm² Rigid 0...70 mm² |
| Product Net Width | 106 mm |
| Product Net Height | 95 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 980 g |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
