ABBINS135

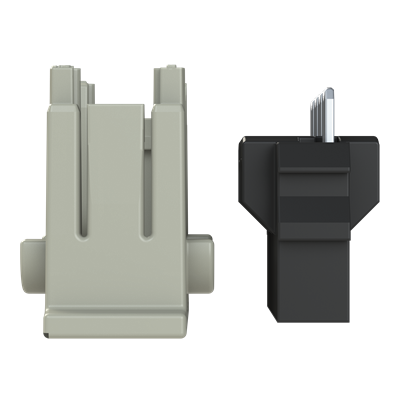

ABB catalog image for this SKU; may represent the product family.
PLC CONNECTION CABLE
INS135
SKU 2CCG000244R0001ABB INS135: PLC connection cable.
INS135Product range
PLC connection cableProduct type
2CCG000244R0001Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CCG000244R0001 |
|---|---|
| Catalog Description | Connector Set for Insite Flatcable 9.25 mm |
| Product Compatibility | SCU100 & SCU200 |
| Communication Interface | InSite bus(Flat cable) |
| Connection Type | Cable |
| Communication | Modbus RTU,TCP/IP Rest API DHCP HTTPS NTP SFTP |
| Technical Information | The SCU100 control unit is designed for comprehensive monitoring functions. It can connect to large number of current sensors, I/O modules, and smart signaling devices. Its robust hardware and integrated metering capabilities make the SCU100 the ideal choice for applications that require extensive monitoring functions. |
| Number of Batteries | 0 |
| Connection Mode and Capacity | 96 Flat cable devices (96 Current sensors or 24 I/O modules or 96 Smart auxiliaries or combination of them totalling to 96) 16 Modbus RTU 16 Modbus TCP |
| RoHS Declaration | 9AKK108470A6924 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20241024 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250225 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Product Net Width | 14.4 mm |
| Product Net Height | 9.5 mm |
| Product Net Depth / Length | 9.25 mm |
| Product Net Weight | 24 g |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 10 mm |
| Package Level 1 Depth / Length | 190 mm |
| Package Level 1 Gross Weight | 27 g |
| Package Level 1 EAN | 7612271508128 |
| Minimum Order Quantity | 1 piece |
| E-Number (Finland) | 6719001 |
| E-Number (Norway) | 8027318 |
| E-Number (Sweden) | 0985045 |
| Declaration | CE REACH RoHS |
| Declaration of Conformity - CE | 9AKK107680A4357 |
| EU Data Act Compliance Declaration | Not applicable |
| Instructions and Manuals | 9AKK107680A1728 |
| Data Sheet, Technical Information | 9AKK107680A1653 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
