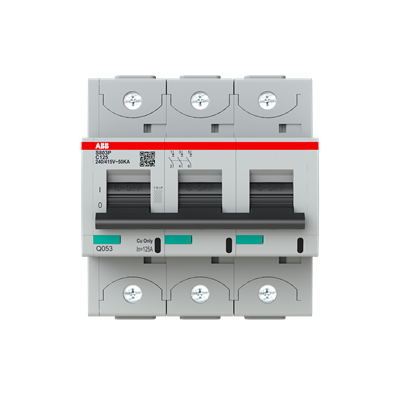

ABB catalog image for this SKU; may represent the product family.
MINIATURE CIRCUIT BREAKER
S803P-C125
SKU 2CCG001234R0001ABB S803P-C125 is a miniature circuit breaker, rated at 125 A with a 3P configuration. Tripping characteristic: C.
125 ARated current
3PPoles
CTrip curve
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 07, 2026.
| Product ID | 2CCG001234R0001 |
|---|---|
| Catalog Description | S803P-C125 High Performance Circuit Breaker. C Characteristic. 50kA, 125A, 3P |
| Rated Current (In) | 125 A |
| Number of Poles | 3P |
| Number of Protected Poles | 3 |
| Tripping Characteristic | C |
| Input Voltage Type | AC/DC |
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC acc. to IEC 60947-2 690 V AC |
| Rated Short-Circuit Capacity | (400 V AC) 15 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (415 V AC) 50 kA (440 V AC) 30 kA (500 V AC) 10 kA (690 V AC) 4.5 kA (375 V DC) 30 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (240 / 415 V AC) 40 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50/60 Hz |
| Standards | IEC/EN 60947-2 UL 1077 |
| Power Loss | Total 28.2 W at Rated Operating Conditions per Pole 9.4 W |
| Degree of Protection | IP20 |
| Pollution Degree | 3 |
| Ambient Air Temperature | Operation -40 ... 70 °C Storage -40 ... 70 °C |
| Connecting Capacity | Flexible 1...50 mm² Rigid 1...70 mm² |
| Tightening Torque | 3.5 N·m |
| Product Net Width | 90.0 mm |
| Product Net Height | 95.0 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 765 g |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
