ABBSD201/25

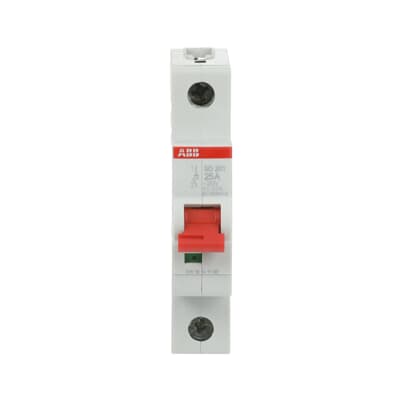

ABB catalog image for this SKU; may represent the product family.
SELECTIVE MAIN LINE CIRCUIT BREAKER
SD201/25
SKU 2CDD281101R0025ABB SD201/25: Selective main line circuit breaker. Rated current: 25 A. Pole configuration: 1P.
25 ARated current
1PPoles
SD201/25Product range
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CDD281101R0025 |
|---|---|
| Catalog Description | SD201/25 Switch Disconnector 1P, 25A |
| ABB EcoSolutions Profile | 9AKK108470A9360 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 85 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability is Enhanced |
| End Of Life Disassembling Instructions | 9AKK108469A8855 |
| Environmental Product Declaration - EPD | 9AKK108470A9091 |
| Contact Position Indication | ON / OFF |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Poles | 1P |
| Tightening Torque | 2.8 N·m |
| Utilization Category | Switching of motor loads or other highly inductive loads - frequent actuation (AC-23A) Switching of resistive loads, including moderate overloads - frequent actuation (DC-21A) |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Switch Type | Off |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Red, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Cover Color | Grey |
| Connecting Capacity | Busbar 10/10 mm² Flexible with Ferrule 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 3 |
| Terminal Type | Screw Terminals |
| Rated Voltage (Ur) | 253 V 12 V Minimum |
| Rated Operational Voltage | 253 V AC 60 V DC |
| Operational Voltage | Maximum 266 V AC Maximum 63 V DC Minimum 12 V AC |
| Voltage Protection Level ( Up) | 4 kV |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 25 A |
| Rated Short-Circuit Capacity | (230 / 400 V AC) 25 kA |
| Rated Conditional Short-Circuit Current (Inc) | 25 kA |
| Rated Frequency (f) | 50 / 60 Hz DC |
| Power Loss | at Rated Operating Conditions per Pole 0.6 W |
| Number of Contacts CO | 0 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 1 |
| Overvoltage Category | III |
| Housing Material | Insulation Group I, RAL 7035 |
| RoHS Declaration | 9AKK108472A0372 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260312 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Toxic Substances Control Act - TSCA | 9AKK108468A8104 |
| Ambient Air Temperature | Operation -25 ... +55 °C Storage -40 ... +70 °C |
| Degree of Protection | IP20 Enclosure with Cover IP40 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 17.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.085 kg |
| Built-In Depth (t2) | 69 mm |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Width | 92 mm |
| Package Level 1 Height | 80 mm |
| Package Level 1 Depth / Length | 183 mm |
| Package Level 1 Gross Weight | 0.9 kg |
| Package Level 1 EAN | 4016779904551 |
| Package Level 2 Units | carton 120 piece |
| Package Level 2 Width | 275 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Gross Weight | 11.2 kg |
| Package Level 2 EAN | 4016779905039 |
| Minimum Order Quantity | 1 piece |
| E-Number (Finland) | 3601624 |
| E-Number (Norway) | 1429476 |
| Declaration of Conformity - CE | 2CDK440034D2703 |
| Instructions and Manuals | 2CDS207104P0003 |
| Data Sheet, Technical Information | 2CDC441015D0201 |
| Standards | IEC/EN 60947-3 |
| Certification Agency | IEC EN |
| Standardization Body | EN IEC |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
