ABBE232-230

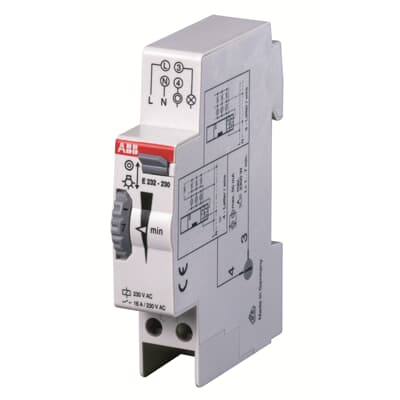

ABB catalog image for this SKU; may represent the product family.
STAIRCASE LIGHTING TIMER
E232-230
SKU 2CDE110000R0501ABB E232-230: Staircase lighting timer.
E232-230Product range
Staircase lighting timerProduct type
2CDE110000R0501Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CDE110000R0501 |
|---|---|
| Catalog Description | E232-230 STAIRCASE TIME SWITCH |
| Function | Mechanical |
| Reset Function | Push Button |
| Minimum Switching Time | 0.01 s |
| Time Range | in 15 sec Increments 1 ... 7 min |
| Impulse Duration | 3 s |
| Ballast Type | Electronic |
| Switch Type | Steadylight |
| Options Provided | Without Switch-Off Warning |
| Cable Cross-Section | Conductor 6 mm² Terminal 10.7 mm² |
| Connection Mode and Capacity | 3 or 4 conductor operated switches |
| Contact Material | silver-tin-oxide (AgSnO2) |
| Switch Off Warning Type | Flickering |
| Rated Voltage (Ur) | 230 V AC |
| Supply Voltage | 0.9 ... 1.1 V |
| Maximum Control Current DC | 4.5 mA |
| Rated Frequency (f) | 50 Hz |
| Maximum Lamp Load | LED Power > 2W 300 W LED Power < 2W 30 W |
| Load Type | Universal and LED Retrofit LEDi/CFLi Incandescent Lamp Halogen Lamp, High Voltage Halogen Lamp, Low Voltage Fluorescent Lamp |
| Rated Switching Capacity | 16 A 230 V AC |
| Power Watt | Filament Lamp 2300 W Fluorescent Lamp Compensated 2300 V·A Fluorescent Lamp Shunt Capacitive 1300 V·A Fluorescent Lamp Inductive 2300 V·A Halogen Lamp 2300 W |
| Control Supply Voltage | 230 AC V |
| Enclosure Material | Heat resistant, self-extinguishing thermoplast |
| RoHS Declaration | 9AKK108472A0372 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20260312 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Toxic Substances Control Act - TSCA | 9AKK108468A8104 |
| Ambient Temperature | –10 ... 50 °C |
| Product Net Width | 17.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 59 mm |
| Product Net Weight | 0.07 kg |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 93 mm |
| Package Level 1 Height | 72 mm |
| Package Level 1 Depth / Length | 183 mm |
| Package Level 1 Gross Weight | 0.85 kg |
| Package Level 1 EAN | 4016779548243 |
| Minimum Order Quantity | 1 piece |
| E-Number (Finland) | 2619410 |
| E-Number (Norway) | 1424316 |
| E-Number (Sweden) | 1330100 |
| Declaration of Conformity - CE | 2CDK440040D0201 |
| VDE Certificate | 9AKK108466A2514 |
| Instructions and Manuals | 9AKK108468A5389 |
| Data Sheet, Technical Information | 9AKK106930A8017 |
| IDEA Granular Category Code (IGCC) | 5185 >> Time switch |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
