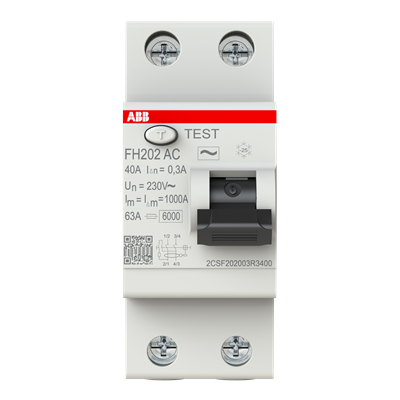

ABB catalog image for this SKU; may represent the product family.
RESIDUAL CURRENT CIRCUIT BREAKER
FH202 AC-40/0.3
SKU 2CSF202003R3400ABB FH202 AC-40/0.3 is a residual current circuit breaker, rated at 40 A with a 2P configuration. Rated residual operating current: 300 mA. Separate overcurrent protection is required.
40 ARated current
2PPoles
300 mAResidual sensitivity
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 07, 2026.
| Product ID | 2CSF202003R3400 |
|---|---|
| Catalog Description | Residual Current Circuit Breaker FH200 - 2P - 300 mA - 40 A - Type AC - Instantaneous |
| Type of Residual Current | Type AC |
| Leakage Current Type | AC |
| Rated Current (In) | 40 A |
| Number of Poles | 2P |
| Rated Residual Current | 300 mA |
| Operating Characteristic | Instantaneous |
| Input Voltage Type | AC |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | acc. to IEC 60898-1 230 V |
| Rated Conditional Short-Circuit Current (Inc) | 6 kA |
| Maximum Surge Current | 0.25 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Frequency (f) | 50 Hz |
| Standards | IEC/EN 61008 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Power Loss | Total 4.8 W |
| Degree of Protection | IP2X |
| Pollution Degree | 2 |
| Ambient Air Temperature | Operation -5 ... 40 °C |
| Rated Cross-Section | 4 - Multi-Wired 10 ... 25 mm² 1 - Solid-Core 25 ... 25 mm² |
| Number of Modular Spacings per DIN Rail | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 200 g |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
