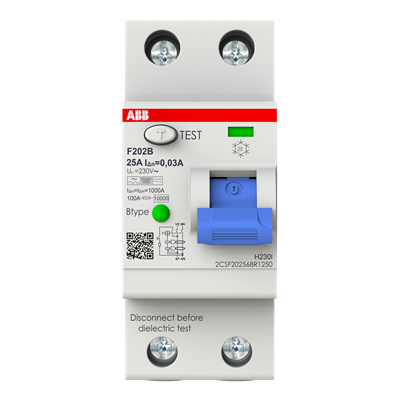

ABB catalog image for this SKU; may represent the product family.
RESIDUAL CURRENT CIRCUIT BREAKER
F202 B-25/0.03
SKU 2CSF202568R1250ABB F202 B-25/0.03 is a residual current circuit breaker, rated at 25 A with a 2P configuration. Rated residual operating current: 30 mA. Separate overcurrent protection is required.
25 ARated current
2PPoles
30 mAResidual sensitivity
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 07, 2026.
| Product ID | 2CSF202568R1250 |
|---|---|
| Catalog Description | Residual Current Circuit Breaker F200 - 2P - 30 mA - 25 A - Type B - 10ms Delay (High Immunity) |
| Type of Residual Current | Type B |
| Leakage Current Type | B |
| Rated Current (In) | 25 A |
| Number of Poles | 2P |
| Rated Residual Current | 30 mA |
| Operating Characteristic | 10ms Delay (High Immunity) |
| Input Voltage Type | AC |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 V AC |
| Rated Conditional Short-Circuit Current (Inc) | (Typ gG/gLfuse, 500 V) 100 A Selective MCB S750-E 63A or S750DR-E/K 100 A |
| Maximum Surge Current | 3 kA |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Frequency (f) | 50/60 Hz |
| Standards | IEC/EN 61008-1, IEC/EN 61008-2-1, IEC/EN 62423 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Power Loss | at Rated Operating Conditions per Pole 0.65 W Total 1.6 W |
| Degree of Protection | Terminals IP20 Housing IP40 |
| Pollution Degree | 3 |
| Ambient Air Temperature | Operation -25...+70 °C Storage -40…+70 °C |
| Terminal Type | Screw Terminals |
| Connecting Capacity | Busbar 10 mm² Flexible 1 ... 25 mm² Stranded 1 ... 25 mm² |
| Tightening Torque | 2.8 N·m |
| Rated Cross-Section | 1 - Solid-Core 1 ... 25 mm² |
| Number of Modular Spacings per DIN Rail | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 220 g |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
