ABBTR2

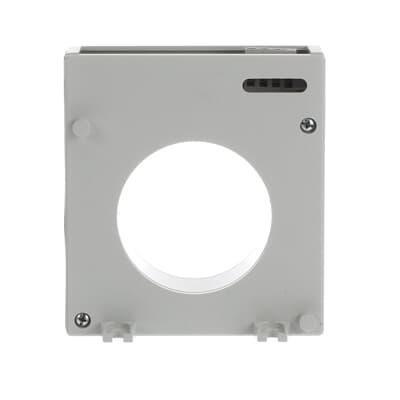

ABB catalog image for this SKU; may represent the product family.
CURRENT TRANSFORMER
TR2
SKU 2CSG060100R1211ABB TR2: Current transformer.
TR2Product range
Current transformerProduct type
2CSG060100R1211Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CSG060100R1211 |
|---|---|
| Catalog Description | Toroidal Transformer TR |
| Country of Origin | Italy China |
| Lead Time | 0 day 135 day 35 day |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active Inactive |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU BRABB008EXPU CHSEC006EXPU CZABB006EXPU |
| Current Limit Function | FS 5 |
| Secondary Output Connection | Screw connection |
| Model Number | Through-feed current converter |
| Number of Inputs | Primary 1 |
| RoHS Declaration | 9AKK106713A5628 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220119 |
| REACH Declaration | 9AKK108473A2054 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260410 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Product Net Width | 0.100 m |
| Product Net Height | 0.110 m |
| Product Net Depth / Length | 0.050 m |
| Product Net Weight | 0.230 kg |
| Inside Diameter | 60 mm |
| Bore Diameter | 60 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 0.06 m |
| Package Level 1 Height | 0.12 m |
| Package Level 1 Depth / Length | 0.115 m |
| Package Level 1 Gross Weight | 0.3 kg |
| Package Level 1 EAN | 8012542020400 |
| Minimum Order Quantity | 1 piece |
| E-Number (Finland) | 7037932 |
| E-Number (Norway) | 1629763 |
| E-Number (Sweden) | 2161642 |
| Declaration of Conformity - CE | 9AKK106713A5628 |
| Instructions and Manuals | No document needed |
| Data Sheet, Technical Information | 9AKK107046A0424 |
| IDEA Granular Category Code (IGCC) | 4189 >> Toroidal current transformers |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
