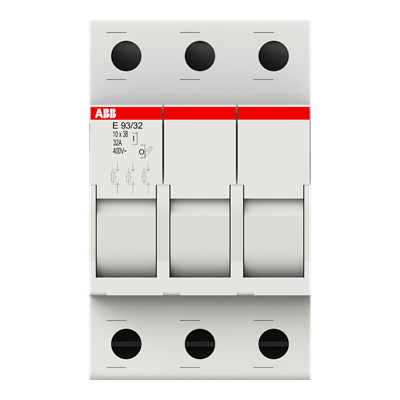

ABB catalog image for this SKU; may represent the product family.
HOLDER FOR CYLINDRICAL FUSE
E 93/32
SKU 2CSM204753R1801ABB E 93/32: Holder for cylindrical fuse. Pole configuration: 3P.
3PPoles
EProduct range
Holder for cylindrical fuseProduct type
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CSM204753R1801 |
|---|---|
| Catalog Description | E 93/32 Fuse switch disconnector |
| Country of Origin | China |
| Lead Time | 67 day |
| Made To Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Inactive |
| Quote Only | No |
| Number of Protected Poles | 3 |
| Number of Poles | 3P |
| Tightening Torque | 2...2.5 N·m |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B) Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B) |
| Lock Type | Padlockable When Open |
| Sealing Type | Sealing Wire |
| Material of Conductor | Copper |
| Options Provided | No |
| Recommended Screw Driver | Pozidriv 2 |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Connecting Capacity | Rigid 2x5 mm² Stranded 2x2-5 mm² |
| Fuse Size | 10x38 mm |
| Operating Humidity (RHamb) | Maximum at +20 °C 90 % |
| Rated Operational Current AC (Ie) | 32 A |
| Fuse System | Cylindrical |
| Rated Voltage (Ur) | acc. To IEC 400 V acc. To UL 690 V |
| Rated Operational Voltage | AC-20B 690 V |AC-22B 400 V |
| Rated Insulation Voltage (Ui) | 1 kV |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 9 W at Rated Operating Conditions per Pole 3 W |
| Connecting Capacity UL/CSA | Rigid 2x10 AWG Stranded 2x14-10 AWG |
| RoHS Declaration | 9AKK106713A5623 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20140101 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Ambient Air Temperature | Operation -5...+40 °C Storage -25...+70 °C |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Vibrations | 1 mm 2 … 13 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 18 shocks 13 ms |
| Environmental Information | See RoHS Information |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 53 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 64 mm |
| Product Net Weight | 183 g |
| Built-In Depth (t2) | 64 mm |
| Package Level 1 Units | box 2 piece |
| Package Level 1 Width | 105 mm |
| Package Level 1 Height | 85 mm |
| Package Level 1 Depth / Length | 64 mm |
| Package Level 1 Gross Weight | 0.369 kg |
| Package Level 1 EAN | 8012542047537 |
| Package Level 2 Units | box 60 piece |
| Package Level 2 Width | 105 mm |
| Package Level 2 Height | 85 mm |
| Package Level 2 Depth / Length | 64 mm |
| Package Level 2 Gross Weight | 369 g |
| Package Level 2 EAN | 8012542638827 |
| Package Level 3 Units | 60 piece |
| Package Level 3 EAN | 8012542047544 |
| Minimum Order Quantity | 1 piece |
| E-Number (Finland) | 3017006 |
| E-Number (Norway) | 1425442 |
| E-Number (Sweden) | 2318052 |
| BV Certificate | 9AKK108467A0330 |
| CCC Certificate | 9AKK108467A0340 |
| Declaration of Conformity - CE | 9AKK106713A5623 |
| IMQ Certificate | 9AKK108467A0324 |
| KRS Certificate | 9AKK108467A0337 |
| LR Certificate | 9AKK107991A7313 |
| UL Certificate | 9AKK107992A1039 |
| Instructions and Manuals | No document needed |
| Data Sheet, Technical Information | 2CSC444002B0204 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| Standards | IEC 60947-3 |
| Certification Agency | IMQ BV Korean register CCC EAC |
| Standardization Body | UL |
