ABBM1175

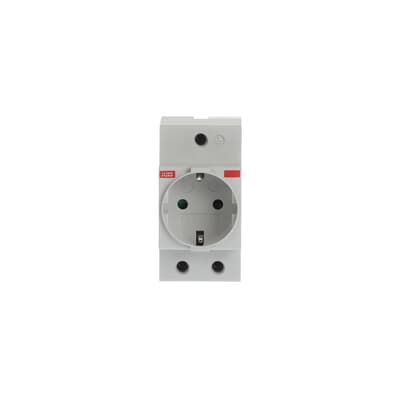

ABB catalog image for this SKU; may represent the product family.
SOCKET OUTLET FOR DISTRIBUTION BOARD
M1175
SKU 2CSM210000R0721ABB M1175: Socket outlet for distribution board. Rated current: 16 A.
16 ARated current
M1175Product range
Socket outlet for distribution boardProduct type
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CSM210000R0721 |
|---|---|
| Catalog Description | M1175 Socket outlet |
| Configuration Only | No |
| Country of Origin | Italy Romania |
| Criticality | No |
| Lead Time | 20 day 0 day 19 day 31 day |
| Made To Order | No |
| Note | No |
| Product Availability Class | From stock if available, otherwise Target delivery time is |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | BRAPR001EXPU CHNOR001EXPU CLABB001EXPU CNIAB001EXPU COABB001EXPU DEAPRMLCEXPU DKSER001EXPU DUABB001EXPU DUABB003EXPU EESER001EXPU EGAUT001EXPU ESATD001EXPU FISER001EXPU FRAUT001EXPU GBINS001EXPU GRABB001EXPU INABB039EXPU INABBRLCEXPU ITIND002EXPU NLABB021EXPU NOATDRLCEXPU SGIND002EXPU TRDMD001EXPU USABB251EXPU USSVCEXPU ZATAD021EXPU |
| Storage Location | 4001 |
| Warranty Return | Product under warranty must be returned |
| Model Number | Socket outlet with protective contact CEE 7/3 (type F) |
| Number of Active Pin Terminals | 2 |
| Tightening Torque | 1.2 N·m |
| Product Type | German Schuko Standard |
| Options Provided | Safety shutters |
| Cable Cross-Section | Minimum 2.5 mm² Maximum 16 mm² |
| Connecting Capacity | Rigid Cu-Cable 2.5 ... 16 mm² |
| Rated Voltage (Ur) | 250 V AC |
| Rated Current (In) | 16 A |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 0.6 W at Rated Operating Conditions per Pole 0.6 W |
| Color | Grey |
| RoHS Declaration | 9AKK107492A6968 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250225 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Ambient Air Temperature | Operation -25…+35 °C Storage -40…+70 °C |
| Degree of Protection | IP20 |
| Environmental Information | 9AKK108471A0778 |
| Width in Number of Modular Spacings | 2.5 |
| Product Net Width | 44 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 0.092 kg |
| Built-In Depth (t2) | 60 mm |
| Dimension Diagram | 9AKK108469A3974 |
| CAD Dimensional Drawing | 9AKK106930A4681 |
| Package Level 1 Units | 4 piece |
| Package Level 1 Width | BX 92 mm |
| Package Level 1 Height | 79 mm |
| Package Level 1 Depth / Length | 178 mm |
| Package Level 1 Gross Weight | 0.416 kg |
| Package Level 1 EAN | 8012542027850 |
| Package Level 2 Units | 72 piece |
| Package Level 2 Width | 93 mm |
| Package Level 2 Height | 82 mm |
| Package Level 2 Depth / Length | 216 mm |
| Minimum Order Quantity | 1 piece |
| E-Number (Finland) | 2519722 |
| E-Number (Norway) | 1547623 |
| Declaration of Conformity - CE | 9AKK107492A6968 |
| VDE Certificate | 9AKK108472A9415 |
| Instructions and Manuals | No document needed |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| Certification Agency | VDE |
| Standardization Body | VDE |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
