CYLINDRICAL FUSE
E 9F20 PV

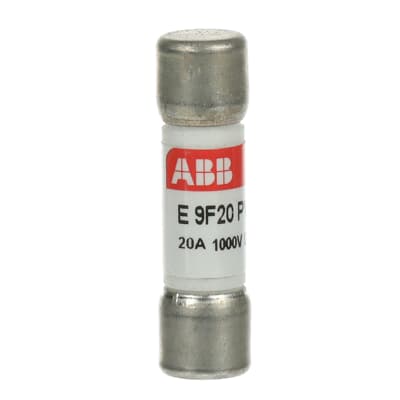

SKU 2CSM213566R1801ABB E 9F20 PV: Cylindrical fuse. Rated current: 20 A.
20 ARated current
EProduct range
Cylindrical fuseProduct type
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CSM213566R1801 |
|---|---|
| Catalog Description | E 9F20 PV Fuse link |
| Fuse Type | gPV |
| Release Type | gPV: Used in string protection of PV modules in photovoltaic applications |
| Construction Material | GMG |
| Fuse Size | 10x38 |
| Contact Material | copper tin plated (Cu/Sn) |
| Fuse System | Cylindrical |
| Rated Voltage (Ur) | 1000 V |
| Rated Current (In) | 20 A |
| Maximum Breaking Capacity | 50 kA |
| Power Loss | Total 2.8 W at Rated Operating Conditions per Pole 2.8 W |
| RoHS Declaration | 9AKK106713A5626 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20140127 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Environmental Information | See RoHS Information |
| Product Net Width | 1 mm |
| Product Net Height | 4 mm |
| Product Net Depth / Length | 1 mm |
| Product Net Weight | 7 g |
| Dimension Diagram | 9AKK108466A8536 |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 45 mm |
| Package Level 1 Height | 110 mm |
| Package Level 1 Depth / Length | 60 mm |
| Package Level 1 Gross Weight | 0.05 kg |
| Package Level 1 EAN | 8012542135661 |
| Package Level 2 Units | box 10 piece |
| Package Level 2 Width | 45 mm |
| Package Level 2 Height | 110 mm |
| Package Level 2 Depth / Length | 60 mm |
| Package Level 2 Gross Weight | 50 g |
| Package Level 2 EAN | 8012542135661 |
| Package Level 3 EAN | 8012542773023 |
| Minimum Order Quantity | 10 piece |
| Declaration of Conformity - CE | 9AKK106713A5626 |
| UL Certificate | 9AKK108467A0349 |
| Instructions and Manuals | No document needed |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| Time-Current Characteristic Curve | 9AKK108467A0155 |
| Standards | IEC 60269-6 |
| Certification Agency | EAC |
| Standardization Body | UL |
