ABBDW2

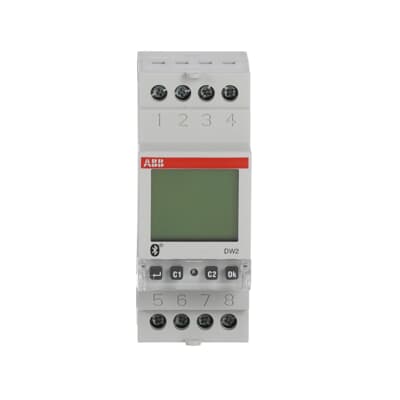

ABB catalog image for this SKU; may represent the product family.
DIGITAL TIME SWITCH FOR DISTRIBUTION BOARD
DW2
SKU 2CSM222521R1000ABB DW2: Digital time switch for distribution board.
DW2Product range
Digital time switch for distribution boardProduct type
2CSM222521R1000Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CSM222521R1000 |
|---|---|
| Catalog Description | DW2 Digital timer |
| Country of Origin | Italy |
| Lead Time | 76 day |
| Made To Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | CHABB001EXPU |
| Warranty Return | Product under warranty must be returned |
| Function | Weekly |
| Power Supply | 230 V AC |
| Accuracy | ± 0.5sec/24h |
| Number of Channels | 2 |
| Maximum Number of Programs | 120 |
| Tightening Torque | 0.5 N·m |
| Minimum Switching Time | 1 min |
| Contact Type | Change-Over (CO) |
| Meter Type | Digital |
| Options Provided | With running reserve |
| Number of Batteries | 1 |
| Battery Size | CR2032 |
| Battery Chemical Composition | Lithium Metal |
| Battery Integration Type | Replaceable Non-Rechargeable |
| Battery Life | 5 year |
| Battery Weight | 0.003 kg |
| Battery Lithium Amount | 0.07 g |
| Battery Report UN 38.3 | C-601-00 |
| Connecting Capacity | Solid 2.5 mm² |
| Communication Protocol | Bluetooth |
| Operational Voltage | 195.5 ... 253 V AC |
| Supply Voltage | 230 V AC |
| Rated Impulse Withstand Voltage (Uimp) | Maximum 4 kV |
| Maximum Switching Current | 16 A |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | 4000 W |
| Power Consumption (@Pcons) | 2 W |
| Power Loss | Total 2 W |
| Rated Switching Capacity | 2000 W FluorescentLamps 600 V·A 600 V·A 500 W |
| RoHS Declaration | 2CSC441018D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Battery Type | Button Cell |
| Ambient Air Temperature | Operation -20 ... +50 °C Storage -25 ... +70 °C |
| Degree of Protection | Housing IP20 |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 65 mm |
| Product Net Depth / Length | 87 mm |
| Product Net Weight | 152 g |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 60 mm |
| Package Level 1 Height | 80 mm |
| Package Level 1 Depth / Length | 97 mm |
| Package Level 1 Gross Weight | 0.233 kg |
| Package Level 1 EAN | 8012542225218 |
| Minimum Order Quantity | 1 piece |
| E-Number (Finland) | 2619407 |
| E-Number (Norway) | 1471251 |
| E-Number (Sweden) | 1330651 |
| Declaration of Conformity - CE | 2CSC441018D2701 |
| Instructions and Manuals | 2CSM441050D0201 |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| Dangerous Goods UN Number | UN 3090 |
| IDEA Granular Category Code (IGCC) | 5188 >> Digital time switch for distribution board |
| Standards | EN 60730-2-7 EN-301 489-17 EN-300 328 EN-62479 EN 50581 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
