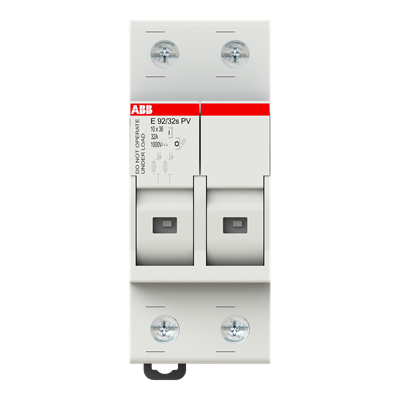

HOLDER FOR CYLINDRICAL FUSE
E 92/32s PV
SKU 2CSM256913R1801ABB E 92/32s PV: Holder for cylindrical fuse. Rated current: 32 A. Pole configuration: 2P.
32 ARated current
2PPoles
EProduct range
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CSM256913R1801 |
|---|---|
| Catalog Description | E 92/32s PV Fuse disconnector |
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Tightening Torque | 2-2.5 N·m |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) |
| Fuse Type | gPV |
| Lock Type | Padlockable |
| Sealing Type | Sealing Wire |
| Material of Conductor | Copper |
| Options Provided | With LED |
| Recommended Screw Driver | Pozidriv 2 |
| Remarks | For use with CU only 60°C, 75°C or 90°C wire |
| Shock and Vibration Withstand acc. to IEC 61373 | Category 1, Class B |
| Connecting Capacity | Stranded 1.5…16 mm² Rigid 1.5…25 mm² |
| Fuse Size | 10x38 mm |
| Operating Humidity (RHamb) | Maximum at +20 °C 90 % |
| Fuse System | Cylindrical |
| Rated Voltage (Ur) | 1000 V |
| Rated Operational Voltage | DC-20B 1000 V DC |
| Rated Insulation Voltage (Ui) | 1 kV |
| Auxiliary Voltage AC/DC | LED Indicator 24-1000 V AC/DC |
| Rated Current (In) | 32 A |
| Power Loss | Total 6 W at Rated Operating Conditions per Pole 3 W |
| Connecting Capacity UL/CSA | Stranded 16…3 AWG Rigid 16...10 AWG |
| Tightening Torque UL/CSA | 18-22 in·lb |
| RoHS Declaration | 2CSC444003D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20140101 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Ambient Air Temperature | Operation -5...+40 °C Storage -25...+70 °C |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Vibrations | 1 mm 2 … 13 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 18 shocks 11 ms |
| Environmental Information | See RoHS Information |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 36 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 64 mm |
| Product Net Weight | 124 g |
| Built-In Depth (t2) | 64 mm |
| Package Level 1 Units | box 3 piece |
| Package Level 1 Width | 105 mm |
| Package Level 1 Height | 85 mm |
| Package Level 1 Depth / Length | 64 mm |
| Package Level 1 Gross Weight | 0.375 kg |
| Package Level 1 EAN | 8012542569138 |
| Package Level 2 Units | box 90 piece |
| Package Level 2 Width | 105 mm |
| Package Level 2 Height | 85 mm |
| Package Level 2 Depth / Length | 64 mm |
| Package Level 2 Gross Weight | 375 g |
| Package Level 2 EAN | 8012542508021 |
| Package Level 3 Units | 90 piece |
| Package Level 3 EAN | 8012542569145 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 2CSC444003D2701 |
| UL Certificate | 9AKK107992A1036 |
| Instructions and Manuals | No document needed |
| Data Sheet, Technical Information | 2CSC444002B0204 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| Standards | IEC 60947-3 UL 4248-19 |
| Certification Agency | CCC EAC |
| Standardization Body | UL |
