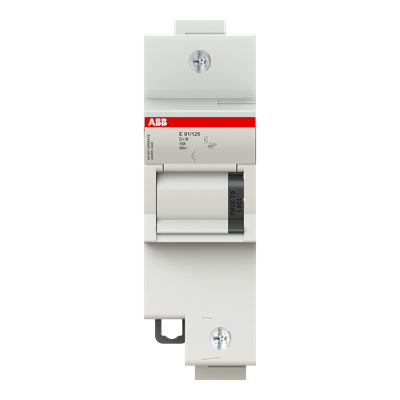

ABB catalog image for this SKU; may represent the product family.
HOLDER FOR CYLINDRICAL FUSE
E 91/125
SKU 2CSM277572R1801ABB E 91/125: Holder for cylindrical fuse. Pole configuration: 1P.
1PPoles
EProduct range
Holder for cylindrical fuseProduct type
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CSM277572R1801 |
|---|---|
| Catalog Description | E 91/125 Fuse disconnector |
| Suitable For | E 90 |
| Suitable for Product Class | Fuse holders |
| Number of Protected Poles | 1 |
| Number of Poles | 1P |
| Tightening Torque | 3.5...4 N·m |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B) |
| Lock Type | Padlockable |
| Sealing Type | Sealing Wire |
| Material of Conductor | Copper |
| Options Provided | No |
| Recommended Screw Driver | Pozidriv 2 |
| Connecting Capacity | Rigid 4 ... 50 mm² Stranded 4 ... 35 mm² |
| Fuse Size | 22x58 mm |
| Operating Humidity (RHamb) | Maximum at +20 °C 90 % |
| Rated Operational Current AC (Ie) | 125 A |
| Fuse System | Cylindrical |
| Rated Voltage (Ur) | acc. To IEC 690 V acc. To UL 690 V |
| Rated Operational Voltage | AC-20B 690 V |
| Rated Insulation Voltage (Ui) | 1 kV |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 9.5 W at Rated Operating Conditions per Pole 9.5 W |
| RoHS Declaration | 2CSC444009D2701 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20140101 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Ambient Air Temperature | Operation -5 ... +40 °C Storage -25 ... +70 °C |
| Degree of Protection | IP20 |
| Resistance to Vibrations | 1 mm 2 … 13 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 18 shocks 11 ms |
| Environmental Information | See RoHS Information |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 73.26 mm |
| Product Net Weight | 135 g |
| Built-In Depth (t2) | 73.26 mm |
| Package Level 1 Units | box 4 piece |
| Package Level 1 Width | 113 mm |
| Package Level 1 Height | 70 mm |
| Package Level 1 Depth / Length | 140 mm |
| Package Level 1 Gross Weight | 0.54 kg |
| Package Level 1 EAN | 8012542773320 |
| Package Level 2 Units | box 64 piece |
| Package Level 2 Width | 130 mm |
| Package Level 2 Height | 85 mm |
| Package Level 2 Depth / Length | 230 mm |
| Package Level 2 Gross Weight | 1178 g |
| Package Level 2 EAN | 8012542775720 |
| Minimum Order Quantity | 1 piece |
| E-Number (Finland) | 3017011 |
| E-Number (Norway) | 1416160 |
| BV Certificate | 9AKK108467A0329 |
| CCC Certificate | 9AKK108467A0344 |
| Declaration of Conformity - CE | 2CSC444009D2701 |
| KRS Certificate | 9AKK108467A0338+T42 |
| LR Certificate | 9AKK108467A0332 |
| RINA Certificate | 9AKK107992A0866 |
| UL Certificate | 9AKK107992A1042 |
| Instructions and Manuals | No document needed |
| Data Sheet, Technical Information | 2CSC444002B0204 |
| IDEA Granular Category Code (IGCC) | 4974 >> Holder for cylindrical fuse |
| Certification Agency | BV Korean register CCC EAC |
| Standardization Body | UL |
