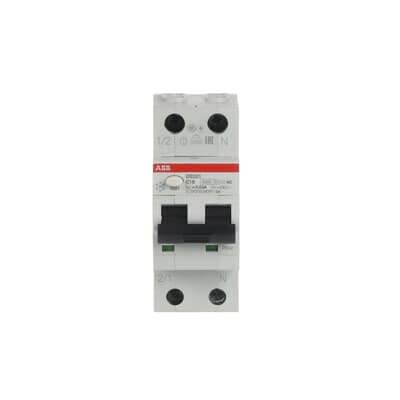

ABB catalog image for this SKU; may represent the product family.
RESIDUAL CURRENT CIRCUIT BREAKER WITH OVERCURRENT PROTECTION
DS201 C16 AC30
SKU 2CSR255080R1164ABB DS201 C16 AC30 is a residual current circuit breaker with overcurrent protection, rated at 16 A with a 1P+N configuration. Rated residual operating current: 30 mA. Tripping characteristic: C.
16 ARated current
1P+NPoles
30 mAResidual sensitivity
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 07, 2026.
| Product ID | 2CSR255080R1164 |
|---|---|
| Catalog Description | Residual Current Circuit Breaker with Overcurrent Protection DS201 - 1P+N - 30 mA - 16 A - C - Type AC - Instantaneous |
| Type of Residual Current | Type AC |
| Rated Current (In) | 16 A |
| Number of Poles | 1P+N |
| Number of Protected Poles | 1 |
| Tripping Characteristic | C |
| Rated Residual Current | 30 mA |
| Operating Characteristic | Instantaneous |
| Input Voltage Type | AC |
| Rated Operational Voltage | acc. to IEC 60898-1 240 V |
| Rated Short-Circuit Capacity | 6 kA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA |
| Maximum Surge Current | 0 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Standards | IEC/EN 61009-1, IEC/EN 61009-2-1 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Power Loss | Average per Pole 2.3 W Phase Pole 3.4 W Neutral Pole 1.2 W Total 4.5 W |
| Degree of Protection | IP20 IP40 |
| Pollution Degree | 2 |
| Ambient Air Temperature | Operation -25 … 55 °C |
| Terminal Type | Screw Terminals |
| Connecting Capacity | Busbar 10 ... 10 mm² Stranded 0.75 ... 25 mm² Flexible with Ferrule 0.75 ... 16 mm² Flexible 0.75 ... 16 mm² |
| Tightening Torque | 2.8 N·m |
| Number of Modular Spacings per DIN Rail | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 200 g |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
