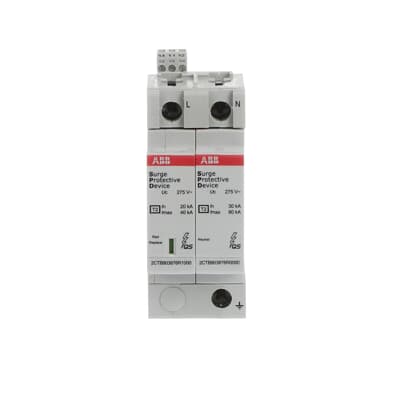

ABBOVRABB OVR T2 1N 40-275 P TS QS, manufacturer catalog image

ABB catalog image for this SKU; may represent the product family.

SURGE PROTECTION DEVICE FOR POWER SUPPLY SYSTEMS

OVR T2 1N 40-275 P TS QS

SKU 2CTB803972R0500

ABB OVR T2 1N 40-275 P TS QS: Surge protection device for power supply systems. Pole configuration: 2P.

2PPoles
OVRProduct range
Surge protection device for power supply systemsProduct type
Request a quote ↗View on ABB Technical specifications ↓
PRODUCT DATA

Technical specifications

Source: ABB English regional product catalog.
Verified September 08, 2026.

2CTB803972R0500 — selected manufacturer specifications
Product ID2CTB803972R0500
Catalog DescriptionOVR T2 1N 40-275 P TS QS Surge Protective Device
Configuration OnlyNo
Country of OriginItaly India
CriticalityNo
Lead Time48 day 0 day
Made To OrderNo
NoteNo
Product Availability ClassStandard delivery time
Product Sales StatusActive
Quote OnlyNo
Stocked At WarehousesBRAPR001EXPU CHNOR001EXPU CLABB001EXPU CNIAB001EXPU COABB001EXPU DEAPRMLCEXPU DKSER001EXPU DUABB001EXPU DUABB003EXPU EESER001EXPU EGAUT001EXPU ESATD001EXPU FISER001EXPU FRAUT001EXPU GBINS001EXPU GRABB001EXPU INABB010EXPU INABB039EXPU INABBRLCEXPU ITIND002EXPU NLABB021EXPU NOATDRLCEXPU SGIND002EXPU TRDMD001EXPU USABB251EXPU ZATAD021EXPU
Storage Location4001
Warranty ReturnProduct under warranty must be returned
ABB EcoSolutions Profile9AKK108472A3406
Environmental Product Declaration - EPD9AKK108472A1711
Type of Low Voltage Distribution SystemTT TN-S
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo)230 / 400 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 275 V
Temporary Overvoltage Test Value (UT)(L-N) 337 V (N-PE) 1200 V
Rated Service Short-Circuit Breaking Capacity (Ics)100 kA
Discharge CurrentNominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA
Impulse CurrentI (imp, 10 / 350 µs, L-N) 2 kA
Short Circuit Withstand Icc100 kA
Arrester ClassII
Number of Protected Poles2
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Number of Poles2P
Number of Conductors2
Position of Neutral TerminalsRight
Transmission StandardOptic
VersionPlug-in
Product TypeQS
Options ProvidedResidential, commercial building.
Auxiliary Circuit LoadMinimum 12Vdc - 10mA Maximum 250Vac - 1A
Preventive Maintenance FeatureNo
Status IndicatorYes
Fuse Size2 modular spacing
Fuse Protected Short-Circuit Makingparallel connection 125 A series connection 125 A
Rated Voltage (Ur)230 V AC
Voltage Protection Level ( Up)1.5 kV (L-N) 1.25 kV (N-PE) 1.4 kV
Power LossTotal 17 mW
RoHS Declaration9AKK108466A4410
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20230707
REACH Declaration9AKK107492A1906
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20231212
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 5000
Width in Number of Modular Spacings2
Product Net Width35.6 mm
Product Net Height95 mm
Product Net Depth / Length58 mm
Product Net Weight0.24 kg
Package Level 1 Unitsbox 1 piece
Package Level 1 Width117 mm
Package Level 1 Height82 mm
Package Level 1 Depth / Length41 mm
Package Level 1 Gross Weight250 g
Package Level 1 EAN3660308519702
Minimum Order Quantity1 piece
E-Number (Finland)3217672
E-Number (Norway)1672312
CB Certificate2CTC432057G1701
CQC Certificate9AKK107680A1974
Declaration2CTC432056G1701
Declaration of Conformity - CE9AKK108466A4410
Instructions and Manuals2CTC432096M1701
Data Sheet, Technical Information2CTC432220D0201
Mechanical Drawings2CTC800021F1200.pdf 2CTC800021F1201.dxf 2CTC800021F1202.stp 2CTC800021F1203.igs
StandardsIEC 61643-11 / EN 61643-11

For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
