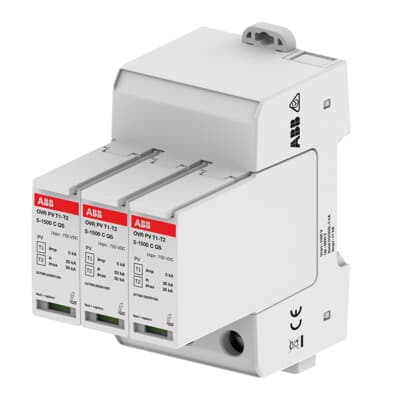

ABB catalog image for this SKU; may represent the product family.
SURGE PROTECTION DEVICE FOR POWER SUPPLY SYSTEMS
OVR PV T1-T2 5-1500 P QS
SKU 2CTB812050R1500ABB OVR PV T1-T2 5-1500 P QS: Surge protection device for power supply systems. Pole configuration: 3P.
3PPoles
OVRProduct range
Surge protection device for power supply systemsProduct type
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CTB812050R1500 |
|---|---|
| Catalog Description | OVR PV T1-T2 5-1500 P QS Surge Protective Device |
| Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Voltage Rating DC | 1500 V |
| Maximum Continuous Operating Voltage (Uc) | (L-PE) 1500 V (L-L) 1500 V (L-N) 0 V (N-PE) 0 V |
| Maximum Power Point (MPP) Voltage | 1500 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 11 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 30 kA I (total, 10 / 350 µs) 5 kA |
| Impulse Current | I (imp, 10 / 350 µs, L-N) 5 kA I (total, 10 / 350 µs) 5 kA |
| Short Circuit Withstand Icc | 11 kA |
| Arrester Class | I II |
| Number of Protected Poles | 2 |
| Number of Poles | 3P |
| Number of Conductors | 2 |
| Transmission Standard | Optic |
| Version | Plug-in |
| Product Type | QS |
| Options Provided | Solar |
| Preventive Maintenance Feature | No |
| Status Indicator | Yes |
| Number of Batteries | 0 |
| Fuse Size | 3 modular spacing |
| Fuse Protected Short-Circuit Making | parallel connection 10 A |
| Rated Voltage (Ur) | 1500 V DC |
| Voltage Protection Level ( Up) | 5 kV (N-PE) 5 kV |
| Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 1500 V (L-L) 1500 V (L-N) 0 V (N-PE) 0 V |
| Voltage Protection Rating UL/CSA (VPR) | Lpe 4 kV Ll 4 kV Ln 0 kV Npe 4 kV |
| RoHS Declaration | 9AKK107991A6344 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230707 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20231212 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 4000 m |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 64 mm |
| Product Net Height | 96 mm |
| Product Net Depth / Length | 84 mm |
| Product Net Weight | 0.488 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 54 mm |
| Package Level 1 Height | 102 mm |
| Package Level 1 Depth / Length | 110 mm |
| Package Level 1 Gross Weight | 0.488 kg |
| Package Level 1 EAN | 4053546034646 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 9AKK107991A6344 |
| Instructions and Manuals | 2CTC431032M1701 |
| Data Sheet, Technical Information | 2CTC431105D0201 |
| Mechanical Drawings | 2CTC812000F0100 2CTC812000F0102 2CTC812000F0103 |
| Standards | IEC 61 643-11 / EN 50539-11 |
