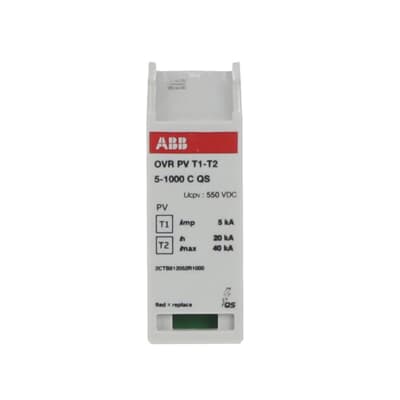

ABB catalog image for this SKU; may represent the product family.
SURGE PROTECTION DEVICE FOR POWER SUPPLY SYSTEMS
OVR PV T1-T2 5-1000 C QS
SKU 2CTB812052R1000ABB OVR PV T1-T2 5-1000 C QS: Surge protection device for power supply systems.
OVRProduct range
Surge protection device for power supply systemsProduct type
2CTB812052R1000Reference
PRODUCT DATA
Technical specifications
Source: ABB English regional product catalog.
Verified September 08, 2026.
| Product ID | 2CTB812052R1000 |
|---|---|
| Catalog Description | OVR PV T1-T2 5-1000 C QS Surge Protective Device |
| Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Voltage Rating DC | 1000 V |
| Maximum Power Point (MPP) Voltage | 1000 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 11 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA I (total, 10 / 350 µs) 5 kA |
| Arrester Class | I II |
| Number of Protected Poles | 2 |
| Number of Conductors | 2 |
| Transmission Standard | Optic |
| Version | Plug-in |
| Product Type | QS |
| Options Provided | Solar |
| Preventive Maintenance Feature | No |
| Status Indicator | Yes |
| Number of Batteries | 0 |
| Fuse Size | 3 modular spacing |
| Fuse Protected Short-Circuit Making | parallel connection 10 A |
| Rated Voltage (Ur) | 1000 V DC |
| Voltage Protection Level ( Up) | 3.8 kV |
| RoHS Declaration | 9AKK107991A6344 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230707 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20231212 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Degree of Protection | IP20 |
| Product Net Width | 24 mm |
| Product Net Height | 45 mm |
| Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.079 kg |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 18 mm |
| Package Level 1 Height | 91 mm |
| Package Level 1 Depth / Length | 49 mm |
| Package Level 1 Gross Weight | 0.079 kg |
| Package Level 1 EAN | 4053546034707 |
| Minimum Order Quantity | 1 piece |
| Declaration of Conformity - CE | 9AKK107991A6344 |
| Instructions and Manuals | 2CTC431032M1701 |
| Data Sheet, Technical Information | No document needed |
| Mechanical Drawings | 2CTC812000F0300 |
| Standards | IEC 61 643-11 / EN 50539-11 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official ABB reference ↗.
