ComPacT NS630b...1600 new generation Schneider Electric MX shunt trip release, Compact NS 630b to Compact NS 3200, 200 VDC to 250 VDC, 200 VAC to 250 VAC 50/60 Hz, manufacturer catalog image

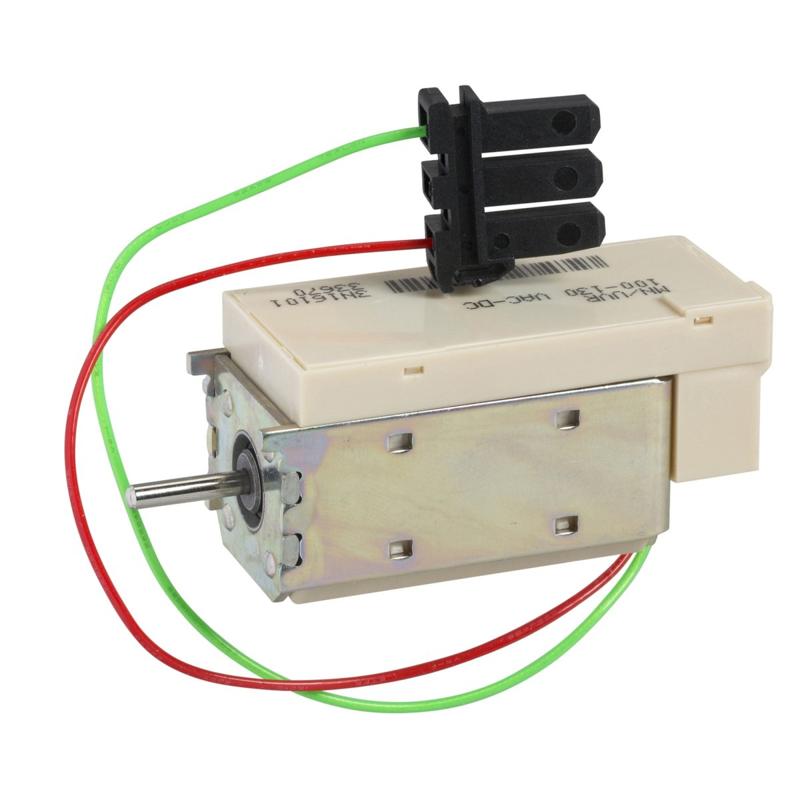

Schneider Electric MX shunt trip release, Compact NS 630b to Compact NS 3200, 200 VDC to 250 VDC, 200 VAC to 250 VAC 50/60 Hz, manufacturer catalog image

Schneider Electric catalog image for this SKU; may represent the product family.

VOLTAGE RELEASE

MX shunt trip release, Compact NS 630b to Compact NS 3200, 200 VDC to 250 VDC, 200 VAC to 250 VAC 50/60 Hz

Name: MX shunt trip release, Compact NS 630b to Compact NS 3200, 200 VDC to 250 VDC, 200 VAC to 250 VAC 50/60 Hz
Brand: Schneider Electric
SKU: 33662

SKU 33662

Schneider Electric 33662 is a voltage release in the ComPacT NS630b...1600 new generation range. Key specifications include control voltage: 200...250 V AC 50/60 Hz; product range: ComPacT NS630b...1600 new generation; product type: Voltage release.

200...250 V AC 50/60 HzControl voltage

ComPacT NS630b...1600 new generationProduct range

Voltage releaseProduct type

Request a quote ↗View on Schneider Electric Technical specifications ↓

PRODUCT DATA

Technical specifications

Source: Schneider Electric product catalog.
Verified September 17, 2026.

33662 — selected manufacturer specifications
Product reference	33662
Range	ComPacT
Range of product	ComPacT NS630b...1600 new generation ComPacT NS1600b...3200 new generation
Device short name	MX
Product or component type	Voltage release
Device application	Control
Voltage release type	Opening coil Instantaneous voltage release
Control type	Standard
[Uc] control circuit voltage	200...250 V AC 50/60 Hz 200...250 V DC
Circuit breaker mounting mode	Fixed
Range compatibility	ComPact ComPact NS630b...1600 ComPact ComPact NS1600b...3200
Operating threshold	0.7...1.1 x Un opening
Response time	50 ms +/- 10 % for Compact NS630b...1600 50 ms +/- 10 % for Compact NS1600b...3200 55 ms +/- 10 % for MasterPact NT 70 ms +/- 10 % for MasterPact NW
Supply holding power	4.5 VA
Accessory / separate part category	Spare part for MasterPact NT Spare part for MasterPact NW Spare part for ComPacT NS630b...1600 new generation Spare part for ComPacT NS1600b...3200 new generation

For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
