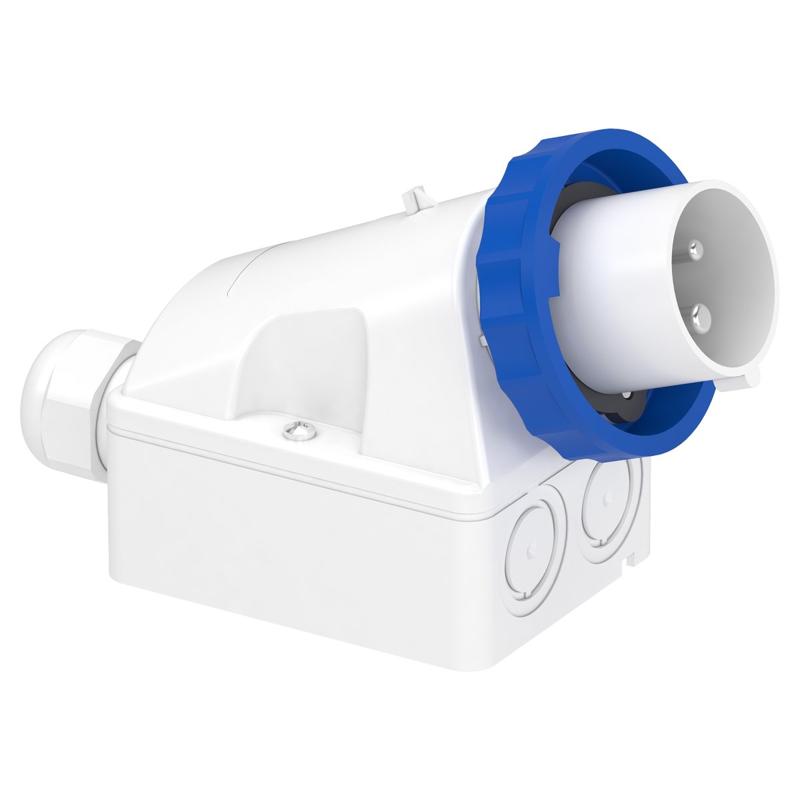

Schneider Electric catalog image for this SKU; may represent the product family.
PLUG
PratiKa industrial plug - 16 A - 2P + E - 200...250 V AC - IP67
SKU 83554Schneider Electric 83554 is a plug in the Mureva range. Key specifications include rated current: 16 A; poles: 2P + E; ip protection: IP67 conforming to IEC 60529.
16 ARated current
2P + EPoles
IP67 conforming to IEC 60529IP protection
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 06, 2026.
| Product reference | 83554 |
|---|---|
| Range | Mureva |
| Product or component type | Plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 2P + E |
| Network type | AC |
| Outlet standard | Industrial |
| Mounting mode | Wall-mounted |
| Plug, socket, control station shape | Angled |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| cable entry | Cable gland |
| Thread type | Pg 16 |
| Net weight | 0.283 kg |
| Base dimension | 80 x 100 mm |
| Height | 139 mm |
| Width | 80 mm |
| Depth | 111 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| Standards | EN 60309-1 EN 60309-2 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
