Harmony 9001K

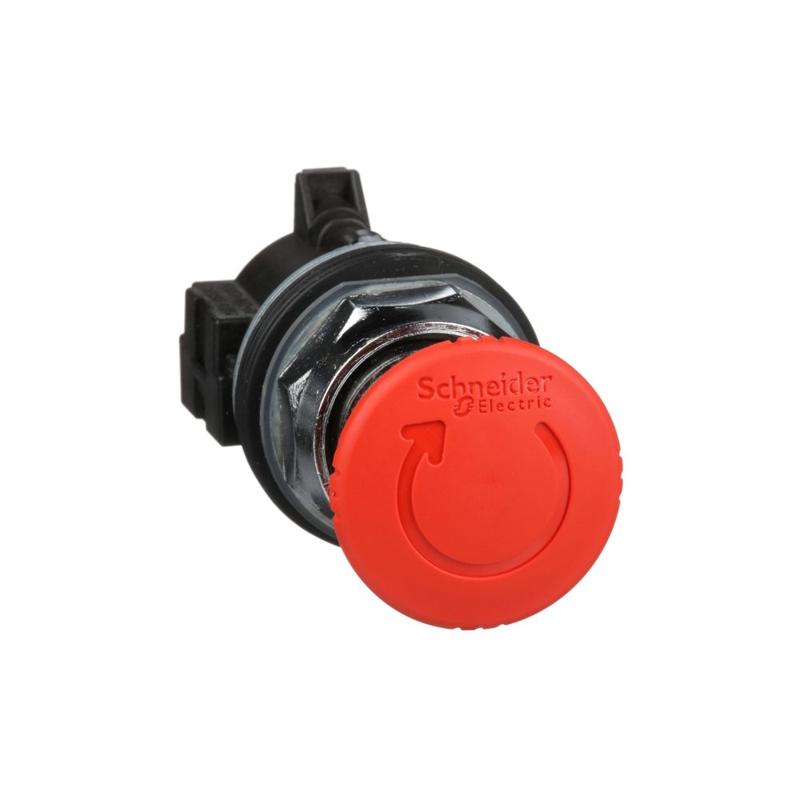

Schneider Electric catalog image for this SKU; may represent the product family.
EMERGENCY STOP PUSH-BUTTON
30mm TTR Mushroom, 2 C/O
SKU 9001KR16H2Schneider Electric 9001KR16H2 is a emergency stop push-button in the Harmony 9001K range. Key specifications include ip protection: IP65/IP66; net weight: 0.141 kg; product range: Harmony 9001K.
IP65/IP66IP protection
0.141 kgNet weight
Harmony 9001KProduct range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | 9001KR16H2 |
|---|---|
| Range of product | Harmony 9001K |
| Product or component type | Emergency stop push-button |
| Device short name | 9001K |
| Type of operator | Turn to release |
| Operator profile | Mushroom Ø 40 mm |
| Bezel material | Metal |
| Mounting diameter | 30 mm |
| CAD overall width | 40 mm |
| CAD overall height | 40 mm |
| CAD overall depth | 116 mm |
| Net weight | 0.141 kg |
| Operating position | Any position |
| Shape of signaling unit head | Round |
| Head material | Plastic |
| Operator position information | 2 positions |
| Contacts type and composition | 2 C/O |
| Mechanical durability | 5000000 cycles |
| Connections - terminals | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1 |
| Tightening torque | 0.8 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross slotted |
| Contacts material | Silver alloy contacts |
| Short-circuit protection | 10 A cartridge fuse conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA |
| [Icm] rated short-circuit making capacity | 12 kA at 120 V AC-15, 7200 VA 0.1 kA at 600 V DC-13 0.27 kA at 250 V DC-13 0.55 kA at 125 V DC-13 |
| Rated breaking capacity | 3 kA at 240 V AC-15, 720 VA 6 kA at 120 V AC-15, 720 VA 1.2 kA at 600 V AC-15, 720 VA 1.5 kA at 480 V AC-15, 720 VA 0.1 kA at 600 V DC-13 0.27 kA at 250 V DC-13 0.55 kA at 125 V DC-13 |
| Device presentation | Complete product |
| Cap/operator or lens colour | Red |
| Size | 30 mm |
| Protective treatment | TC |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65/IP66 |
| NEMA degree of protection | NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 6 |
| Standards | IEC 60204-1, for emergency stop devices if used with emergency stop legend plate type 9001KN ISO 13850, for emergency stop devices if used with emergency stop legend plate type 9001KN IEC 60947-5-1 IEC 60947-1 IEC 60947-5-4 IEC 60947-5-5 JIS C 4520 JIS C 852 UL 60947-5-5 CSA C22.2 No 14 |
| Product certifications | NEMA UL 508 |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
