Acti9 iPC

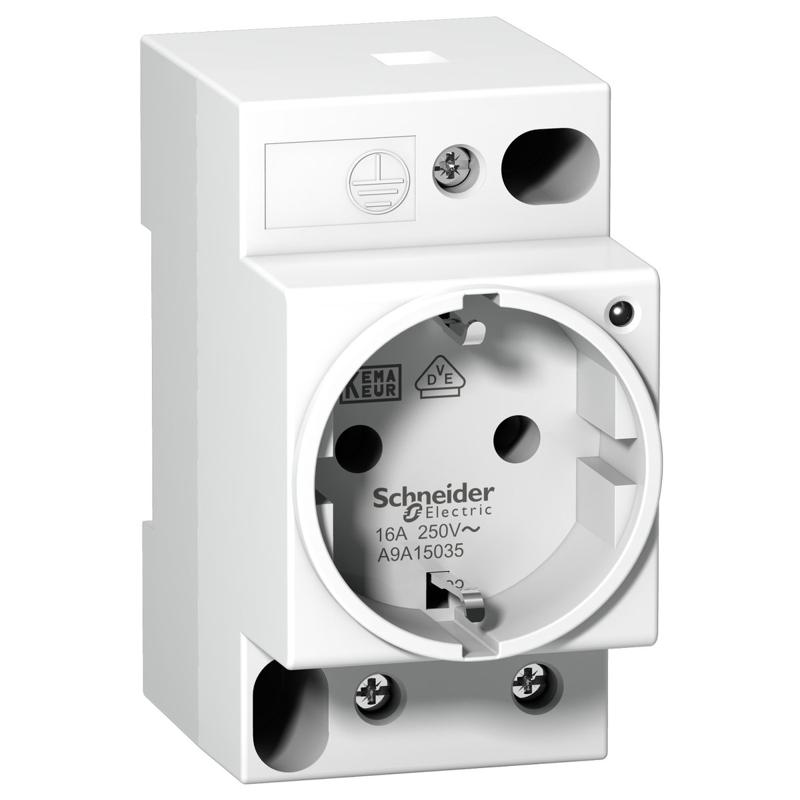

Schneider Electric catalog image for this SKU; may represent the product family.
MODULAR SOCKET-OUTLET
DIN socket iPC-2P+E -16A-250VAC- VDE 0620 -german std-with volt.pres.indic.light
SKU A9A15035Schneider Electric A9A15035 is a modular socket-outlet in the Acti9 iPC range. Key specifications include rated current: 16 A; poles: 2P + E; ip protection: IP20 conforming to IEC 60529.
16 ARated current
2P + EPoles
IP20 conforming to IEC 60529IP protection
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 06, 2026.
| Product reference | A9A15035 |
|---|---|
| range of product | Acti9 |
| Product name | Acti9 iPC |
| Product or component type | Modular socket-outlet |
| Device short name | iPC |
| Poles description | 2P + E |
| Outlet standard | German |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| Mounting mode | Fixed |
| Mounting support | Symmetrical DIN rail |
| 9 mm pitches | 5 |
| Height | 84 mm |
| Width | 45 mm |
| Depth | 63 mm |
| Net weight | 98 g |
| Colour | White |
| Local signalling | LED voltage presence indicator light service life: 100000 h |
| Connections - terminals | Tunnel type terminal1 cable(s) 6 mm² flexible Tunnel type terminal1 cable(s) 10 mm² rigid |
| Wire stripping length | 13 mm |
| Tightening torque | 1.2 N.m |
| Standards | VDE 0620 |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| IK degree of protection | IK03 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…80 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
