Acti9 iTR

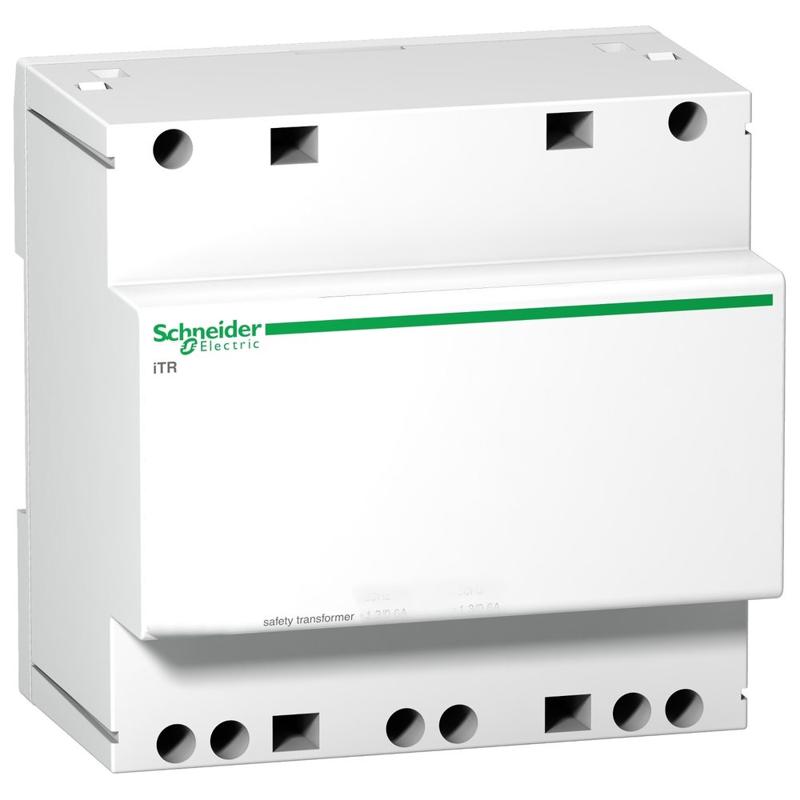

Schneider Electric catalog image for this SKU; may represent the product family.
TRANSFORMER
modular safety transfomer iTR - 230 V 50..60 Hz - output 12..24 V - 63 VA
SKU A9A15222Schneider Electric A9A15222 is a transformer in the Acti9 iTR range. Key specifications include mounting mode: Fixed; operational voltage: 230 V AC 50 Hz; mounting support: 35 mm symmetrical DIN rail.
FixedMounting mode
230 V AC 50 HzOperational voltage
35 mm symmetrical DIN railMounting support
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | A9A15222 |
|---|---|
| Transformer type | Safety transformer |
| Range | Acti9 |
| Range of product | Acti9 |
| Product name | Acti9 iTR |
| Product or component type | Transformer |
| Device short name | iTR |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| Output voltage | 12/24 V: +/-5 % on load 14/28 V: off load |
| Output short-circuit protection | Built-in |
| rated power in VA | 63 VA |
| Temperature derating table | 63 VA 35 °C 59.85 VA 40 °C 50.4 VA 50 °C 37.8 VA 55 °C 28.35 VA 60 °C |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 10 |
| Height | 89 mm |
| Width | 90 mm |
| Depth | 60 mm |
| Colour | White |
| Auxiliary connection terminal | Tunnel type terminals 4 mm² |
| Wire stripping length | 5 mm |
| Tightening torque | 0.5 N.m |
| Standards | IEC 61558-2-6 EN 60742 EN 61558-2-6 |
| Product certifications | NF |
| Overvoltage category | Class II with terminal shields in option |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -25…80 °C |
