Acti9 iPB

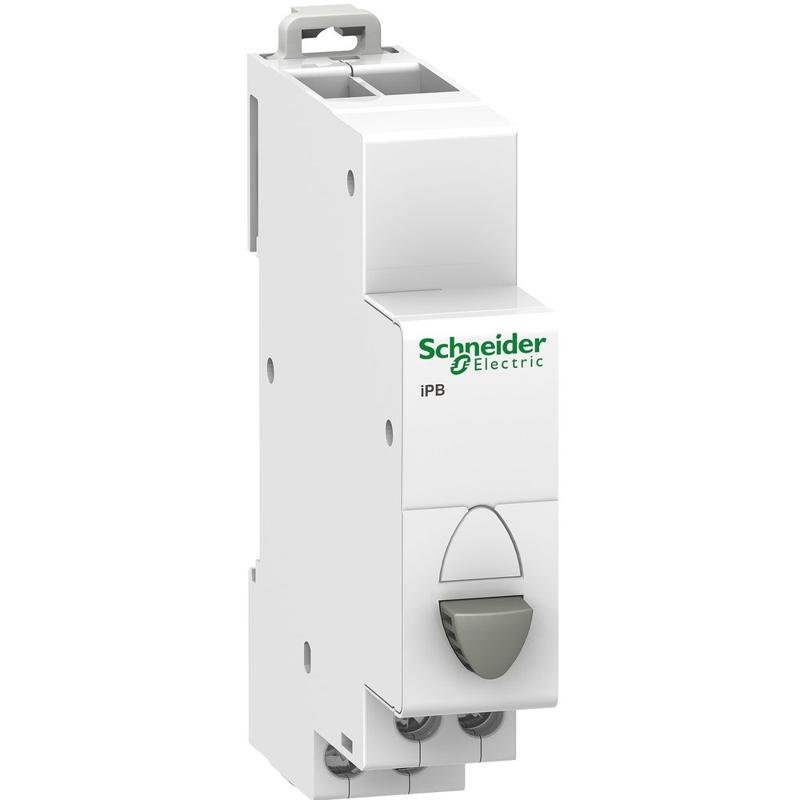

Schneider Electric catalog image for this SKU; may represent the product family.
PUSH-BUTTON
Acti9 iPB 1NO single push button grey
SKU A9E18032Schneider Electric A9E18032 is a push-button in the Acti9 iPB range. Key specifications include mounting mode: Fixed; operational voltage: 250 V AC; mounting support: 35 mm symmetrical DIN rail.
FixedMounting mode
250 V ACOperational voltage
35 mm symmetrical DIN railMounting support
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | A9E18032 |
|---|---|
| range of product | Acti9 |
| Product name | Acti9 iPB |
| Product or component type | Push-button |
| Device short name | iPB |
| Standards | IEC 60947-5-1 IEC 60669-1 |
| Contacts type and composition | 1 NO |
| [Ie] rated operational current | 20 A |
| [Ue] rated operational voltage | 250 V AC |
| Control type | 1 push-button grey |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | Upside: Clario Upside: Librio Upside: ProDis |
| 9 mm pitches | 2 |
| Height | 82 mm |
| Width | 18 mm |
| Depth | 71 mm |
| Colour | White |
| Electrical durability | AC-22: 30000 cycles AC 50/60 Hz |
| Connections - terminals | Staggered tunnel terminal1 cable(s) 0.5 mm² rigid Staggered tunnel terminal1 cable(s) 0.5 mm² flexible Staggered tunnel terminal1 cable(s) 0.5 mm² flexible with ferrule Staggered tunnel terminal2 cable(s) 2.5 mm² rigid Staggered tunnel terminal2 cable(s) 2.5 mm² flexible Staggered tunnel terminal2 cable(s) 2.5 mm² flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…80 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
