Acti9 iPRD

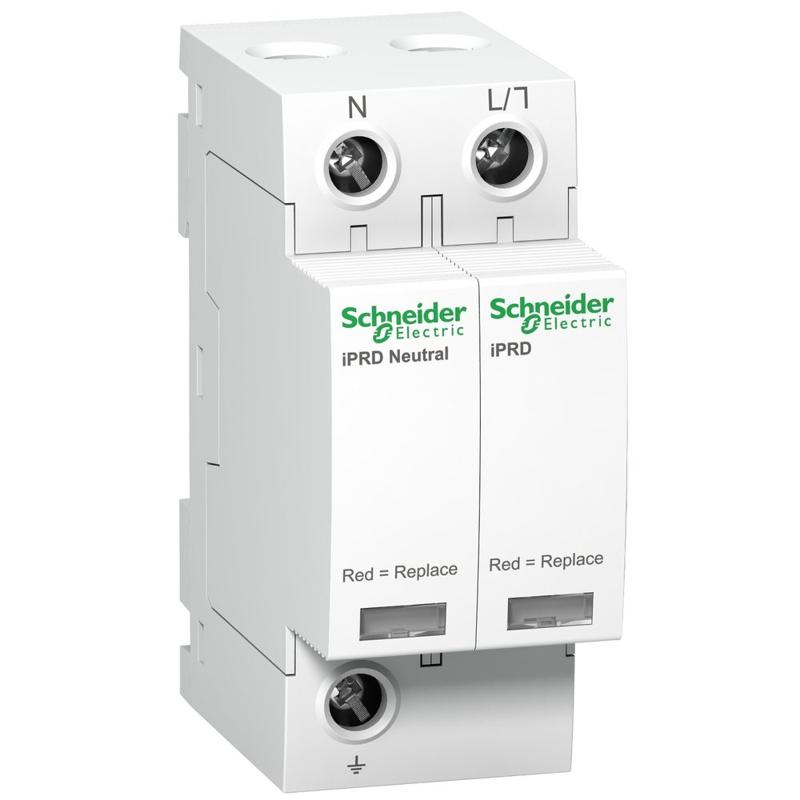

Schneider Electric catalog image for this SKU; may represent the product family.
SURGE ARRESTER WITH PLUGGABLE CARTRIDGE
iPRD8 modular surge arrester - 1P + N - 350V
SKU A9L08500Schneider Electric A9L08500 is a surge arrester with pluggable cartridge in the Acti9 iPRD range. Key specifications include poles: 1P + N; operational voltage: 230 V AC (+/- 10 %) at 50/60 Hz; mounting mode: Clip-on (DIN rail).
1P + NPoles
230 V AC (+/- 10 %) at 50/60 HzOperational voltage
Clip-on (DIN rail)Mounting mode
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | A9L08500 |
|---|---|
| Range of product | IPRD |
| range of product | Acti9 |
| Product name | Acti9 iPRD |
| Product or component type | Surge arrester with pluggable cartridge |
| Device short name | iPRD8 |
| Device application | Distribution |
| Standards | EN 61643-11:2012 IEC 61643-11:2011 |
| Product certifications | CE |
| Quality labels | KEMA-KEUR NF |
| Poles description | 1P + N |
| Remote signalling | Without |
| Surge arrester type | Electrical distribution network |
| Earthing system | TN-S TT |
| Surge arrester class type | Type 2 + 3 |
| Surge arrester technology | MOV + GDT |
| [Ue] rated operational voltage | 230 V AC (+/- 10 %) at 50/60 Hz |
| Nominal discharge current | Common mode: 2.5 kA (L/PE) Common mode: 2.5 kA (N/PE) Differential mode: 2.5 kA (L/N) |
| Maximum discharge current | Common mode: 8 kA L/PE Common mode: 8 kA N/PE Differential mode: 8 kA L/N |
| [Uoc] open circuit voltage | 10 kV type 3 common mode N/PE 10 kV type 3 differential mode L/N |
| [Uc] maximum continuous operating voltage | Common mode: 260 V N/PE Common mode: 350 V L/PE Differential mode: 350 V L/N |
| Maximum [Up] voltage protection level | Common mode 1.1 kV type 3 N/PE Differential mode 1 kV type 2 L/N Differential mode 1.1 kV type 3 L/N Common mode 1.4 kV type 2 N/PE |
| [Ut] temporary overvoltage | 337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode 442 V L/PE 5 s withstand |
| Disconnector device type | Associated circuit breaker iC60L 10 A curve C - Icu 25 kA Associated circuit breaker IC60N 10 A curve C - Icu 10 kA Associated circuit breaker iC60H 10 A curve C - Icu 15 kA Associated fuse gG 25 A - Icu 15 kA Associated fuse gG 80 A - Icu 50 kA |
| Mounting mode | Clip-on (DIN rail) |
| 9 mm pitches | 4 |
| Height | 85 mm |
| Width | 36 mm |
| Depth | 69 mm |
| Net weight | 0.211 kg |
| Colour | White (RAL 9003) |
| [Ipe] Ground residual current | 0.6 mA 0.003 mA |
| Connections - terminals | Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm² |
| Tightening torque | 2.5 N.m |
| Compatibility code | IPRD8 |
| IK degree of protection | IK03 conforming to IEC 62262 |
| Relative humidity | 5…95 % |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
