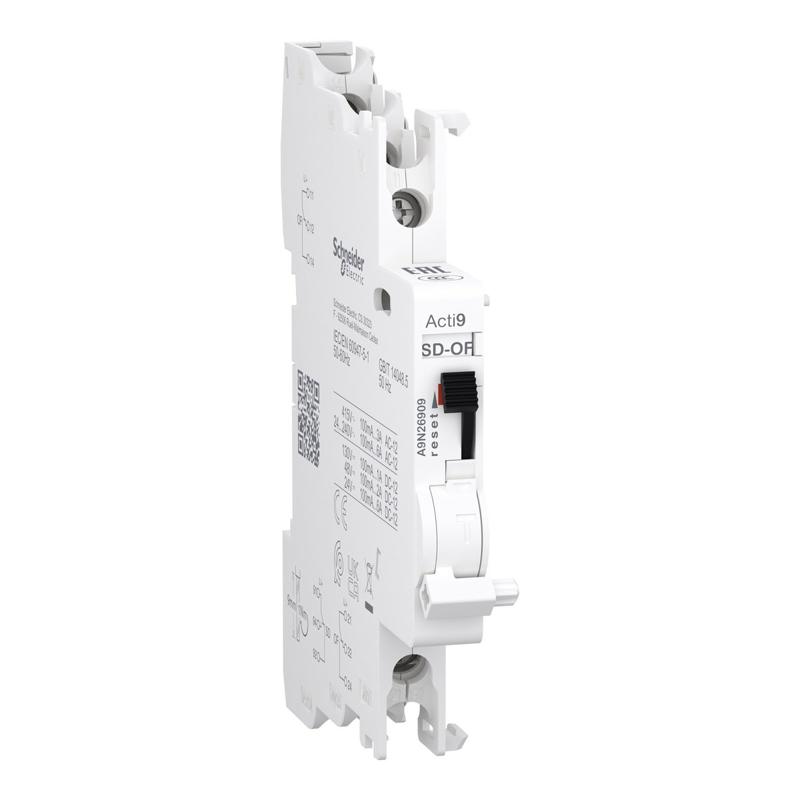

Schneider Electric catalog image for this SKU; may represent the product family.
DOUBLE OC OR FAULT CONTACT
Auxiliary contact, Acti9 A9N, OF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection
SKU A9N26909Schneider Electric A9N26909 is a double oc or fault contact in the Acti9 range. Key specifications include signal contacts: 2 C/O; mounting mode: Clip-on; rated current: 0.1…6 A at 24...250 V, AC 50/60 Hz.
2 C/OSignal contacts
Clip-onMounting mode
0.1…6 A at 24...250 V, AC 50/60 HzRated current
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 17, 2026.
| Product reference | A9N26909 |
|---|---|
| range of product | Acti9 |
| Product or component type | Double OC or fault contact |
| Device short name | OF and OF or OF and SD |
| Signal contacts composition | 2 C/O |
| [In] rated current | 0.1…6 A at 24...250 V, AC 50/60 Hz 0.1…6 A at 24...240 V, AC 50/60 Hz 0.1…3 A at 415 V, AC 50/60 Hz 0.1…6 A at 24 V, DC 0.1…2 A at 48 V, DC 0.1…1.5 A at 60 V, DC 0.1…1 A at 130 V, DC |
| 9 mm pitches | 1 |
| Standards | EN/IEC 60947-5-1 GB/T 14048.5 |
| Product certifications | CE UKCA |
| Quality labels | EAC CCC |
| Range compatibility | Acti9 C120 Acti9 C60H-DC Acti9 SW60-DC Acti9 C60PV-DC Acti9 xC60 |
| [Ui] rated insulation voltage | 500 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Local signalling | Mechanical indicator |
| Mounting mode | Clip-on |
| Mounting location | Left side of circuit-breaker |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | NO |
| Height | 90 mm |
| Width | 9 mm |
| Depth | 68 mm |
| Net weight | 38 g |
| Colour | White |
| Connections - terminals | Screw clamp terminal (top and bottom): 1 cable(s) 0.5…2.5 mm² - rigid Screw clamp terminal (top and bottom): 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (top and bottom): 2 cable(s) 1.5 mm² - flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m top and bottom |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
| Tropicalisation | 2 |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -40…85 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
