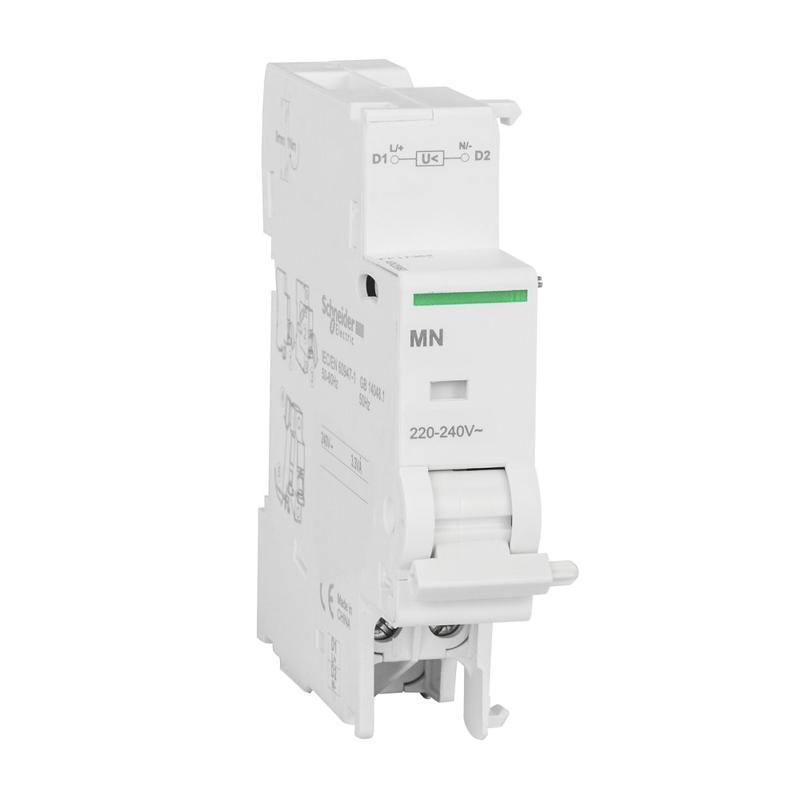

Schneider Electric catalog image for this SKU; may represent the product family.
UNDERVOLTAGE RELEASE
Voltage release MN 220-240Vac dc
SKU A9N26960Schneider Electric A9N26960 is a undervoltage release in the Acti9 range. Key specifications include control voltage: 220...240 V AC 50/60 Hz; mounting mode: Fixed; mounting support: 35 mm symmetrical DIN rail.
220...240 V AC 50/60 HzControl voltage
FixedMounting mode
35 mm symmetrical DIN railMounting support
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | A9N26960 |
|---|---|
| range of product | Acti9 |
| Product or component type | Undervoltage release |
| Device short name | MN |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| Control type | Standard |
| 9 mm pitches | 2 |
| Range compatibility | Acti9 iDPN Acti9 C120 Acti9 C40 Acti9 C60H-DC Acti9 C60NA-DC Acti9 C60PV-DC Acti9 DPN Vigi Acti9 DT40 Acti9 DT60 Acti9 ID C40 Acti9 IDc Acti9 ITG40 Acti9 ID Acti9 DPN |
| Local signalling | Action indicator |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Height | 82.5 mm |
| Width | 18 mm |
| Depth | 73.5 mm |
| Net weight | 66 g |
| Colour | White |
| Connections - terminals | Clamp terminal - 1 cable(s) 2.5 mm² - flexible Clamp terminal - 1 cable(s) 2.5 mm² - rigid Clamp terminal - 2 cable(s) 1.5 mm² - flexible Clamp terminal - 2 cable(s) 1.5 mm² - rigid |
| Wire stripping length | 9 mm |
| Tightening torque | 1 N.m |
| Standards | EN/IEC 60947-2 |
| Product certifications | KEMA ASTA LCIE ASEFA |
| Tropicalisation | 2 conforming to EN/IEC 60947-2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -40…85 °C |
