Modicon ABL2

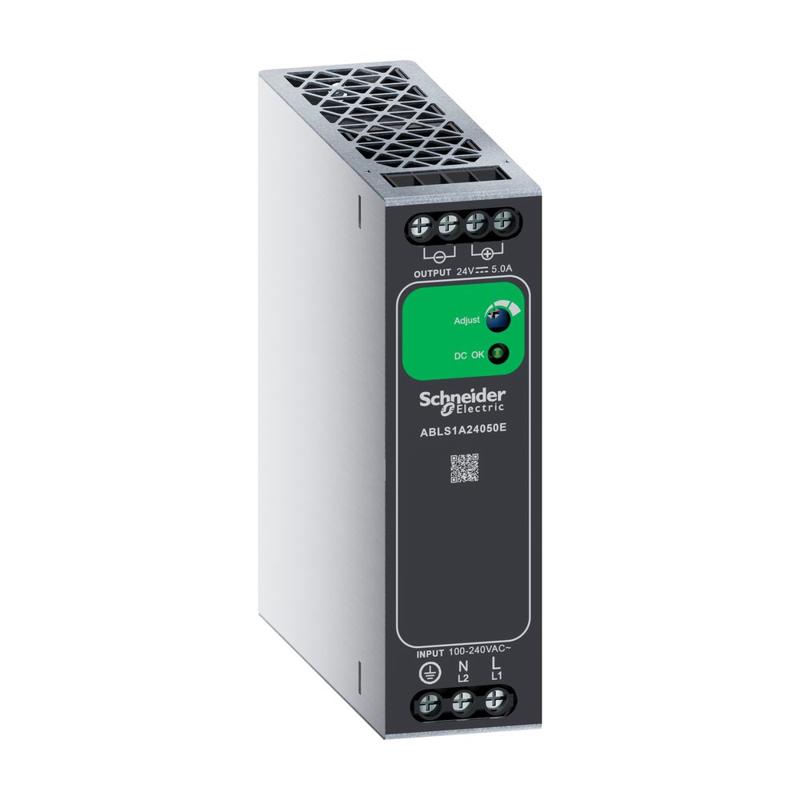

Schneider Electric catalog image for this SKU; may represent the product family.
POWER SUPPLY
single phase power supply, 100 to 240V AC input, 24V DC output, 120W, Din-rail, IP20
SKU ABLS1A24050ESchneider Electric ABLS1A24050E is a power supply in the Modicon ABL2 range. Key specifications include ip protection: IP20 conforming to EN 62368-1; net weight: 0.451 kg; product range: Modicon ABL2.
IP20 conforming to EN 62368-1IP protection
0.451 kgNet weight
Modicon ABL2Product range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | ABLS1A24050E |
|---|---|
| Range of product | Modicon ABL2 |
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Rated power in W | 120 W |
| Main Input Voltage | 100...240 V AC single phase 140...340 V DC |
| Output voltage | 24 V DC |
| Power supply output current | 5 A |
| Operating position | Vertical |
| Vibration resistance | 2 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Name of test | Radiated electromagnetic field conforming to EN 61000-4-3 level 3A Electrostatic discharges conforming to EN 61000-4-2 level 3B Electrical fast transients/bursts conforming to EN 61000-4-4 level 3B Surge conforming to EN 61000-4-5 level 3B Conducted conforming to EN 61000-4-6 level 3A Emission conforming to EN 55032 |
| Input voltage limits | 90...264 V AC 127...370 V DC |
| Network frequency | 47...63 Hz |
| Inrush current | 20 A at 115 V AC 35 A at 230 V AC |
| Cos phi | 0.4…0.6 |
| Efficiency | 87 % |
| Current consumption | 1.34 A at 240 V 2.38 A at 100 V |
| Input protection type | Integrated fuse (not interchangeable) |
| Output voltage limits | 21.6...27.6 V |
| Line and load regulation | +/- 1 % |
| Holding time | >= 12 ms at 115 V |
| Output protection type | Against overload, protection technology: 1.1...1.3 x In overload protection Against overvoltage, protection technology: tripping if U between 29...33 V Against short-circuits, protection technology: automatic reset Thermal, protection technology: auto reset |
| Connections - terminals | For ground connection: screw type terminals, connection capacity: 1 x 4 mm² 12 AWG For input connection: screw type terminals, connection capacity: 2 x 4 mm² 12 AWG For output connection: screw type terminals, connection capacity: 2 x 4 mm² 12 AWG |
| Marking | CE UL |
| Operating altitude | 2000 m 5000 m |
| Overvoltage category | Class I conforming to EN 62368-1 |
| Meantime between failure [MTBF] | 100000 h at 40 °C |
| Status LED | 1 LED (green) output voltage |
| Width | 36 mm |
| Height | 125 mm |
| Depth | 113 mm |
| Net weight | 0.451 kg |
| Product certifications | CE RoHS RoHS (china) UKCA UL 508 REACH |
| Environmental characteristic | Safety conforming to EN 62368-1 EMC conforming to BS EN/EN 61000-4-2/3/4/5/6/8/11 EMC conforming to EN 55032 |
| IP degree of protection | IP20 conforming to EN 62368-1 |
| Ambient air temperature for operation | 20…50 °C (without derating) 50…70 °C (with derating factor) |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 10…95 % |
| Pollution degree | 2 |
| Dielectric strength | 2000 V between input and ground 3000 V between input and output 500 V between output and ground |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
