Altistart 01

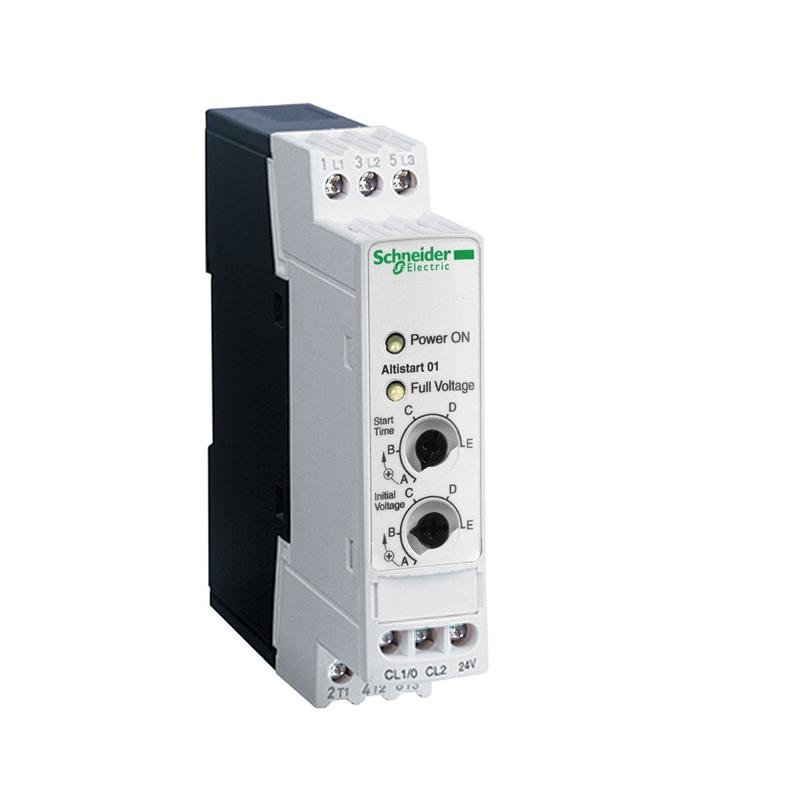

Schneider Electric catalog image for this SKU; may represent the product family.
SOFT STARTER
soft starter for asynchronous motor, Altistart 01, ATS01, 3A, 110 to 480V, 0.55 to 1.1kW
SKU ATS01N103FTSchneider Electric ATS01N103FT is a soft starter in the Altistart 01 range. Key specifications include supply phases: 1 phase; control voltage: 110 V AC +/- 10 % at 30 mA; ip protection: IP20.
1 phaseSupply phases
110 V AC +/- 10 % at 30 mAControl voltage
IP20IP protection
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 06, 2026.
| Product reference | ATS01N103FT |
|---|---|
| Range of product | Altistart 01 |
| Product destination | Asynchronous motors |
| Product or component type | Soft starter |
| Product specific application | Simple machine |
| Device short name | ATS01 |
| Network number of phases | 1 phase |
| [Us] rated supply voltage | 110...480 V - 10...10 % |
| Motor power kW | 0.37 kW, 3 phases at 230 V 0.55 kW, 3 phases at 230 V 1.1 kW, 3 phases at 400 V 0.37 kW, 1 phase at 230 V |
| Motor power hp | 0.5 hp, 3 phases at 230 V 0.5 hp, 3 phases at 460 V 1.5 hp, 3 phases at 460 V |
| IcL starter rating | 3 A |
| Utilisation category | AC-53B conforming to EN/IEC 60947-4-2 |
| Current consumption | 15 A at nominal load |
| Type of start | Start with voltage ramp |
| Power dissipation in W | 19 W in transient state 4 W at full load and at end of starting |
| Assembly style | With heat sink |
| Function available | Integrated bypass |
| Supply voltage limits | 99…528 V |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Output voltage | <= power supply voltage |
| [Uc] Control circuit voltage | 110 V AC +/- 10 % at 30 mA 24 V AC/DC +/- 10 % at 25 mA 240 V AC +/- 10 % at 65 mA |
| Starting time | 1 s / 100 5 s / 20 Adjustable from 1 to 5 s |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
| Discrete output current | 2 A DC-13 3 A AC-15 |
| Tightening torque | 0.8 N.m |
| Electrical connection | Cage type connector - rigid 1 2.5 mm² 14 AWG control circuit Cage type connector - rigid with cable end 1 2.5 mm² 14 AWG power circuit Cage type connector - rigid without cable end 2 1 mm² 17 AWG control circuit Cage type connector - rigid without cable end 2 1 mm² 17 AWG power circuit Cage type connector - flexible with cable end 1 2.5 mm² 14 AWG control circuit Cage type connector - flexible with cable end 1 2.5 mm² 14 AWG power circuit Cage type connector - flexible without cable end 1 2.5 mm² 14 AWG control circuit Cage type connector - flexible without cable end 1 2.5 mm² 14 AWG power circuit Cage type connector - flexible with cable end 2 0.75 mm² 18 AWG control circuit Cage type connector - flexible with cable end 2 0.75 mm² 18 AWG power circuit Cage type connector - flexible without cable end 2 1 mm² 17 AWG control circuit Cage type connector - flexible without cable end 2 1 mm² 17 AWG power circuit |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Height | 100 mm |
| Width | 23 mm |
| Depth | 100 mm |
| Net weight | 0.16 kg |
| Compatibility code | ATS01N1 |
| Power range | 0…0.5 kW at 200…240 V 1 phase 0…0.5 kW at 200…240 V 3 phases 0.55…1 kW at 200…240 V 3 phases 1.1…2 kW at 380…440 V 3 phases |
| Motor starter type | Soft starter |
| Electromagnetic compatibility | Conducted and radiated emissions level B conforming to CISPR 11 Conducted and radiated emissions level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 EMC immunity level 3 conforming to EN 50082-1 EMC immunity level B conforming to EN 50082-2 Harmonics level 3 conforming to IEC 1000-3-2 Harmonics level 3 conforming to IEC 1000-3-4 Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11 Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
| Standards | EN/IEC 60947-4-2 |
| Product certifications | CSA GOST C-Tick UL CCC |
| IP degree of protection | IP20 |
| Pollution degree | 2 conforming to EN/IEC 60947-4-2 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation | -10…40 °C (without derating) 40…50 °C (with current derating of 2 % per °C) |
| Ambient air temperature for storage | -25…70 °C conforming to EN/IEC 60947-4-2 |
| Operating altitude | <= 1000 m without derating > 1000 m with current derating of 2.2 % per additional 100 m |
