EasyLogic PFC Capacitor

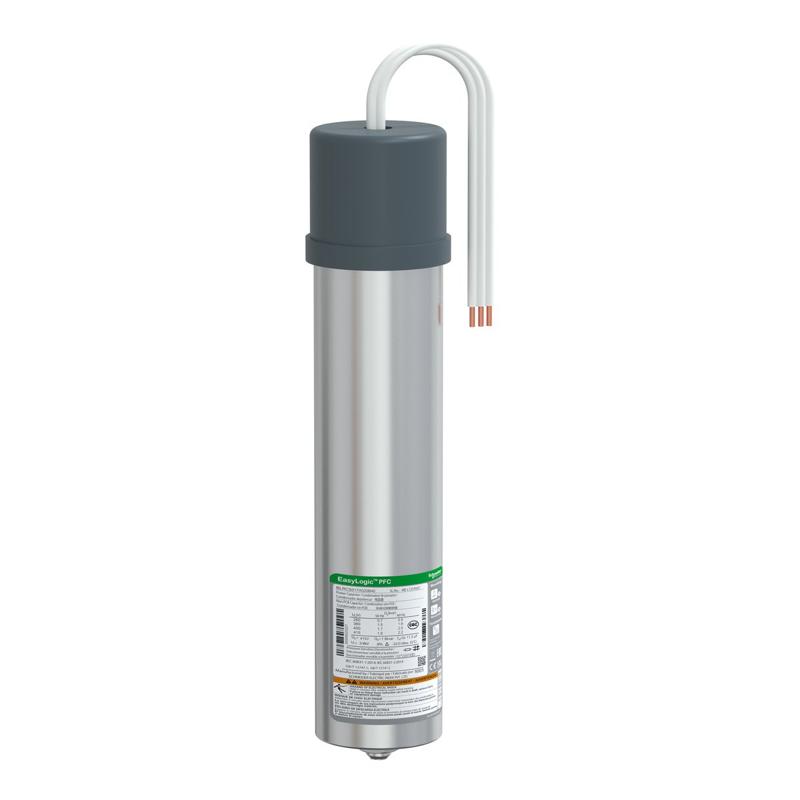

Schneider Electric catalog image for this SKU; may represent the product family.
STANDARD DUTY CAPACITOR
EasyLogic PFC Capacitor standard duty capacitor, 1.5 kvar 380 V 50 Hz
SKU BLRCS017A020B40Schneider Electric BLRCS017A020B40 is a standard duty capacitor in the EasyLogic PFC Capacitor range. Key specifications include reactive power: 1.5 kvar 380 V 50 Hz; rated voltage: 380…415 V AC 50/60 Hz; network frequency: 50/60 Hz.
1.5 kvar 380 V 50 HzReactive power
380…415 V AC 50/60 HzRated voltage
50/60 HzNetwork frequency
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 17, 2026.
| Product reference | BLRCS017A020B40 |
|---|---|
| Range | EasyLogic |
| Product or component type | Standard duty capacitor |
| Product name | EasyLogic PFC Capacitor |
| Network frequency | 50/60 Hz |
| Series name | EasyLogic PFC Capacitor |
| Network harmonic content | <= 10 % |
| Electrical parameters | 1.5 kvar 380 V 50 Hz 1.8 kvar 380 V 60 Hz 1.7 kvar 400 V 50 Hz 2 kvar 400 V 60 Hz 1.8 kvar 415 V 50 Hz 2.2 kvar 415 V 60 Hz |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| continuous overcurrent capacity | 1.5 x In |
| Rated voltage | 380…415 V AC 50/60 Hz |
| Dielectric losses | < 0.2 W/kvar |
| Power losses | < 0.5 W/kVAr |
| Capacitance tolerance | - 5 % to 10 % |
| Voltage test | 2.15 x Un AC between terminals for 10 s <= 660 V - 3 kV AC between terminal and container for 10 s >= 660 V - 6 kV AC between terminal and container for 10 s |
| Inrush current | 200 x In |
| Maximum switching operation per year | 5000 |
| Service life in hours | 100000 h |
| Dielectric material | Metallized polypropylene film with Zn/Al alloy, |
| Impregnation material | Non-PCB soft PUR resin Biodegradable |
| Type of installation | Indoor installation |
| Connections - terminals | Double Faston terminal |
| Mounting mode | Vertical |
| Diameter | 50 mm |
| Height | 245 mm |
| Net weight | 0.7 kg |
| Standards | IEC 60831-1 IEC 60831-2 |
| IP degree of protection | IP20 |
| Operating altitude | 2000 m |
| Temperature class | D |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95 % |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
